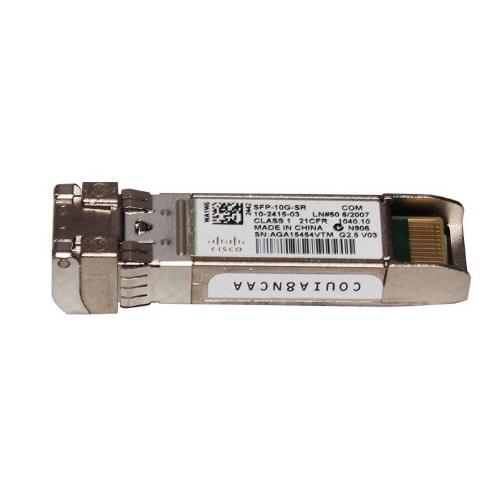

10GBASE-SR SFP Cisco SFP-10G-SR
- 10GBASE-SR SFP Module.
- Industry’s smallest 10G form factor for greatest density per chassis.
- Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch.
- Supports “pay-as-you-populate” model for investment protection and ease of technology migration.
- Digital optical monitoring capability for strong diagnostic capabilities.
- Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link.
- Cisco quality identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco.
Specification
| Wavelength | 850 nm |
| Cable Type | MMF |
| Core Type | 62.5, 62.5, 50, 50, 50 |
| Modal Bandwidth (MHz*km) | 160 (FDDI), 200 (OM1), 400, 500 (OM2), 2000 (OM3) |
| Cable Distance | 26m, 33m, 66m, 82m, 300m |
| Transmit and Receive Wavelength (nm) | 840 to 860 |
| Bail Latch Color | Beige |
| Power Consumption (W) | 1 |
| Operating Temperature Range | 0 to 70°C (32 to 158°F) |
| Transmit Power (dBm) | Maximum: -1.2, Minimum: -7.3 |
| Receive Power (dBm) | Maximum: -1.0, Minimum: -9.9 |
- Bảo hành: 12 tháng.
