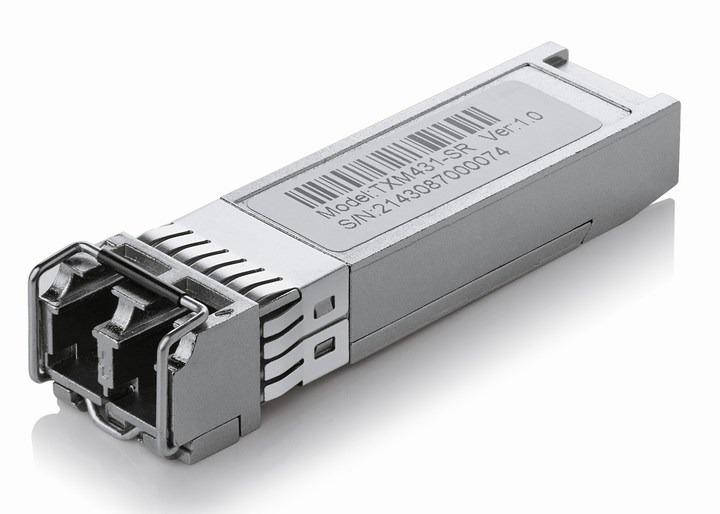

10GBase-SR SFP+ LC Transceiver TP-LINK TXM431-SR
- Multi-mode SFP+ LC Transceiver.
- Hot-Pluggable with maximum flexibility.
- Compatible with multiple TP-LINK switch models/ SFP+ modules.
- 850nm multi-mode transceiver.
- 300m max distance.
- Supports full duplex.
- LC/UPC Connector.
- 10Gbps Ethernet connectivity.
- SFP+ form factor.
- Hot pluggable.
Specifications
Standards and Protocols | IEEE 802.3ae, CSMA/CD, TCP/IP |
Wave Length | 850nm |
Fiber Type | 50/125um or 62.5/ 125um Multi-mode |
Max. Cable Length | 300m or 33m |
Data Rate | 10Gbps |
Port Type | LC/UPC |
Transmission power | -1.0dBm (Max) |
-7.3dBm (Min) | |
Reception power | -1.0dBm (Max) |
-9.9dBm (Min) | |
Sensitivity | -11.1dBm |
Safety & Emission | FCC, CE |
Power Supply | 3.3V |
Environment | Operating Temperature: 0ºC ~70ºC (32ºF ~ 158ºF) |
Storage Temperature: -40ºC ~80ºC (-40ºF ~ 176ºF) | |
Operating Humidity: 10% ~ 90% non-condensing | |
Storage Humidity: 5% ~ 90% non-condensing |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
