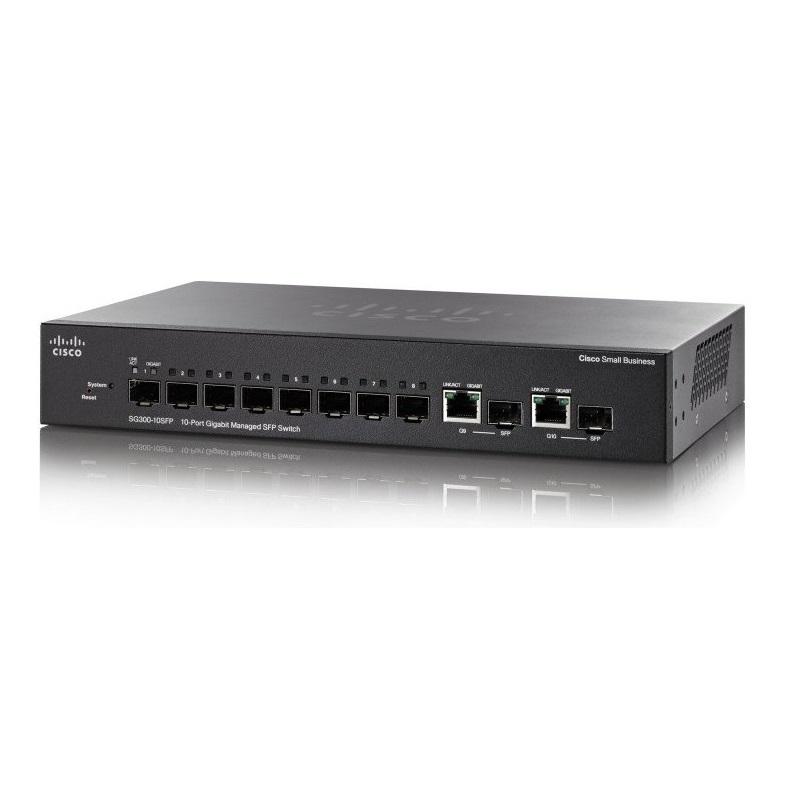

10-Port Gigabit Managed SFP Switch Cisco SG300-10SFP-K9-EU
- SG300-10SFP-K9-EU supports 8 10/100/1000 ports (SFP), 2 Combo mini-GBIC ports.
- High performance and reliability: Get the high availability and performance you need to support vital business applications while reducing downtime.
- Advanced features: Control network traffic with advanced features such as quality of service (QoS), Layer 3 static routing, and IPv6 support.
- Easy setup and management: Intuitive browser-based tools, mass deployment capabilities, and consistent features across all models simplify setup and configuration.
- An eco-friendly solution: Switches optimize power usage for energy efficiency without compromising performance.
- Peace of mind: All Cisco 300 Series Switches are protected for the life of the product by the Cisco Limited Lifetime Hardware Warranty, which includes next-business-day advance replacement.
Specifications
| General | |
| Device Type | Switch - 10 ports - L3 - managed |
| Enclosure Type | Desktop, rack-mountable - 1U |
| Performance | Switching capacity: 20 Gbps Forwarding performance (64-byte packet size): 14.88 Mpps |
| MAC Address Table Size | 16,000 entries |
| Capacity | 4000 active VLANs |
| Routing Protocol | Static IPv4 routing |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
| Jumbo Frame Support | 9 KB |
| Authentication Method | SSH, RADIUS, TACACS+ |
| Features | Layer 3 switching, Layer 2 switching, DHCP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, RSTP support, MSTP support, TFTP support, ACL support, QoS, Jumbo Frames support, MLD snooping |
| Compliant Standards | |
| RAM | 128 MB |
| Flash Memory | 16 MB |
| Status Indicators | Link activity, port transmission speed, system |
| Expansion / Connectivity | |
| Interfaces | 10 x SFP (mini-GBIC) 2 x 10BASE-T/100BASE-TX/1000BASE-T - RJ-45 1 x console - 9 pin D-Sub (DB-9) - management |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230V (50/60 Hz) |
| Miscellaneous | |
| Width | 11 in. |
| Depth | 6.68 in. |
| Height | 1.73 in. |
| Weight | 4.68 lbs |
| Cables Included | 1 x serial cable |
| Rack Mounting Kit | Included |
| MTBF | 132,151 hours at 45C |
| Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2 |
- Bảo hành: 12 tháng.
