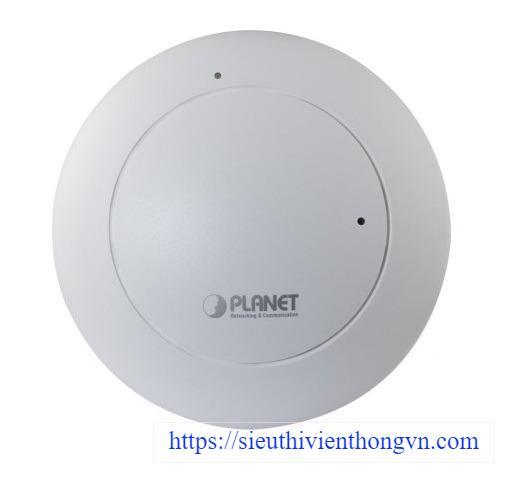

1200Mbps 802.11ac Dual Band Ceiling Mount Wireless Access Point PLANET WDAP-C7200AC
Standard Compliant Hardware Interface
- Complies with IEEE 802.11ac (draft 2.0) and IEEE 802.11a/b/g/n standards
- 1 x 10/100/1000Base-T Port with 1-port PoE (PD, Powered Device)
- IEEE 802.3at Power over Ethernet design
RF Interface Characteristics
- Features 2.4GHz (802.11b/g/n) and 5GHz (802.11a/n/ac) concurrent dual band for more efficiency of carrying high load traffic
- 2T2R MIMO technology for enhanced throughput and coverage
- Provides multiple adjustable transmit power control
- High speed up to 1.2Gbps (300Mbps for 2.4GHz + 867Mbps for 5GHz) wireless data rate
Comprehensive Wireless Advanced Features
- Multiple Wireless Modes: AP, Client, WDS PtP/ PtMP, WDS Repeater, Universal Repeater
- Supports up to 10 multiple-SSIDs (2.4GHz+5GHz) to allow users to access different networks through a single AP
- Supports WMM (Wi-Fi Multimedia) and wireless QoS to enhance the efficiency of multimedia application
- Supports IAPP (Inter Access Point Protocol) and wireless roaming to enable clients to roam across different wireless networks
- Supports 5-level Transmitting Power Control to adapt various environments
- Supports wireless schedule to automatically enable or disable the wireless function based on predefined schedule
Secure Network Connection
- Advanced security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES encryption) and 802.1x Radius Authentication
- Supports MAC address filtering
Easy Installation & Management
- Flexible deployment with standard 802.3at PoE/ PD supported
- Web-based UI and Quick Setup Wizard for easy configuration
- Remote Management allows configuration from a remote site
- SNMP-based management interface
- System status monitoring includes DHCP Client and System Log
Đặc tính kỹ thuật
Hardware Specifications | |
Interfaces LAN | 1 x 10/100/1000Base-T RJ45 port |
Auto-negotiation and Auto MDI/MDI-X | |
Antennas Gain | 2 x 2.4GHz 2.5dBi PCB antenna |
2 x 5GHz 4dBi PCB antenna | |
Reset Button | Reset button on the top cover |
Press over 7 seconds to reset the device to factory default | |
LED Indicators | PWR |
Allow LED to turn off via software control | |
Wireless Interface Specifications | |
Standard | IEEE 802.11ac (Draft 2.0) 5GHz |
IEEE 802.11a/n 5GHz | |
IEEE 802.11b/g/n 2.4GHz | |
Antenna Structure | 802.11ac: 2T2R MU-MIMO |
802.11n: 2T2R MIMO | |
Modulation | DSSS |
Data Modulation | 802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) |
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) | |
802.11b: DSSS (DBPSK / DQPSK / CCK) | |
Band Mode | 2.4GHz / 5GHz concurrent mode |
Frequency Range | 2.4GHz: America/ FCC: 2.412~2.462GHz |
Europe/ ETSI: 2.412~2.484GHz | |
5GHz: America/ FCC: 5.180~5.240GHz, 5.725~5.850GHz | |
Europe/ ETSI: 5.180~5.240GHz | |
Operating Channels | 2.4GHz: America/ FCC: 1~11 |
Europe/ ETSI: 1~13 | |
5GHz: America/ FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 | |
Europe/ ETSI: 36, 40, 44, 48 | |
Channel Width | 802.11ac: 20/40/80MHz |
802.11n: 20/40MHz | |
Transmission Distance | 802.11ac (draft): up to 30m |
802.11n: up to 70m | |
802.11g: up to 30m | |
Max. RF Power | 5GHz: |
802.11ac (VHT20): 15.5dBm | |
802.11ac (VHT40): 15.5dBm | |
802.11ac (VHT80): 15.5dBm | |
802.11n (HT20): 15.5dBm | |
802.11n (HT40): 15.5dBm | |
802.11a: 15.5dBm | |
2.4GHz: | |
802.11n: 17 ±2.5dBm | |
802.11b/g: 20 ±2.5dBm | |
Software Features | |
Wireless Mode | Universal Repeater (AP+Client) |
Repeater (WDS+AP) | |
AP (Access Point) | |
WDS PTP (Point to Point) | |
WDS PTMP (Point to Multipoint) | |
Client | |
Encryption Security | WEP (64/128-bit) encryption security |
WPA / WPA2 (TKIP/AES) | |
WPA-PSK / WPA2-PSK (TKIP/AES) | |
Wireless Security | Provides wireless LAN ACL (Access Control List) filtering |
Wireless MAC address filtering | |
Supports WPS (Wi-Fi Protected Setup) | |
Enable/ Disable SSID Broadcast | |
Wireless Advanced | WMM (Wi-Fi Multimedia): 802.11e Wireless QoS |
Multiple SSID: up to 5 at 2.4GHz and 5GHz, respectively | |
Wireless Isolation: Enables to isolate each connected wireless client from communicating with each other | |
IAPP (Inter Access Point Protocol): 802.11f Wireless Roaming | |
Provides Wireless Statistics | |
Max. Clients | Wire: 253 |
2.4GHz Wireless: 32 | |
5GHz Wireless: 32 | |
LAN | Built-in DHCP server supporting static IP address distributing |
Supports UPnP | |
Supports 802.1d Spanning Tree | |
Standards Conformance | |
IEEE Standards | IEEE 802.11ac (Draft 2.0, 2T2R, up to 867Mbps) |
IEEE 802.11n (2T2R, up to 300Mbps) | |
IEEE 802.11g | |
IEEE 802.11b | |
IEEE 802.11i | |
IEEE 802.3 10Base-T | |
IEEE 802.3u 100Base-TX | |
IEEE 802.3ab 1000Base-T | |
IEEE 802.3x Flow Control | |
Other Protocols and Standards | CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP |
Power Requirements | 802.3at PoE, 48-56VDC input |
Power Consumption | 20W (max.) |
Mounting | Ceiling Mount |
Material | Plastic |
Dimensions (Φ x H) | 194 x 49 mm |
Weight | 300 ±5g |
- Sản suất tại Taiwan.
- Bảo hành: 12 tháng.
