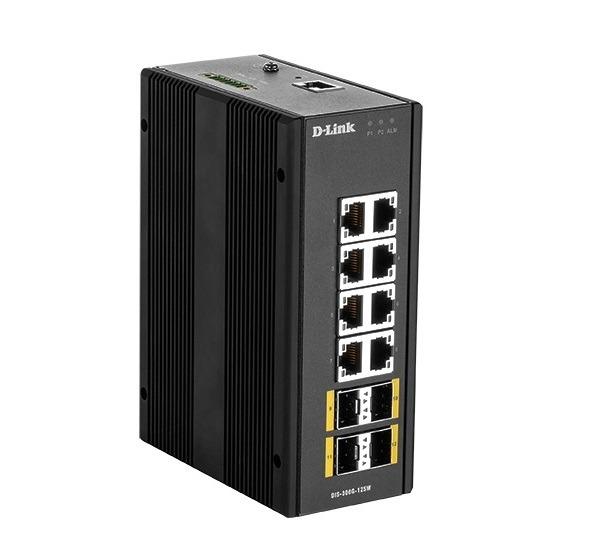

12-port Gigabit Layer 2 Managed Industrial Switch D-Link DIS-300G-12SW

Giá : 52,740,000 vnđ (Đã bao gồm VAT)

- 8 x 10/100/1000 BASE-T ports

- 4 x SFP ports

- 1 x RJ-45 Console port

- A wide variety of port options offers the flexibility to choose the best switch for the situation, including PoE options

- High redundancy features to provide industrial-grade reliability:

o Dual power inputs

o Ring Protection with <20ms

- Resistant to temperatures between -40 and 75°C

- Shock and vibration resistance further boost resilience to outside conditions

- IP30-rated ingress protection provides defense against small objects entering the switch

- Reverse Polarity Protection prevents damage in case of accidental incorrect wiring setup

- Overload Current Protection prevents damage from unexpected power surges

- Quality of Service (QoS) prioritizes network traffic, minimizing the impact of busy bandwidth

- Fanless design for silent operation

- DIN rail or wall mountable

Specifications

Model	DIS-300G-12SW
Interfaces
Hardware Version	A1
Number of Ports	8 x 10/100/1000BASE-T ports 4 x SFP ports 1 x RJ-45 Console port
Port Functions	IEEE 802.3 for Ethernet IEEE 802.3u for Fast Ethernet IEEE 802.3ab for Gigabit Ethernet IEEE 802.3z for Gigabit fiber IEEE 802.3az-compliant
Media Interface Exchange	Auto-MDI/MDIX adjustment for all twisted pair ports
Performance
Switching Capacity	24 Gbps
Max. Forwarding Rate	17.85 Mpps
MAC Address Table Size	Up to 8K entries
Transmission Method	Store-and-forward
Physical
Power input	12 to 58 V DC terminal block dual input
Power Consumption	Maximum: 17 W
Alarm Relay	0.5A at 24 V
Heat Dissipation	58 BTU/hr
Dimensions (W x D x H)	61 x 154 x 109 mm
Weight	1.08 kg
Ventilation	Fanless
Operating Temperature	-40 to 75 °C
Storage Temperature	-40 to 85 °C
Operating Humidity	5% to 95% RH, non-condensing
Storage Humidity	5% to 95% RH, non-condensing
Installation	DIN rail/wall mountable
Materia	IP30-rated metal casing

- Bảo hành: 36 tháng.
