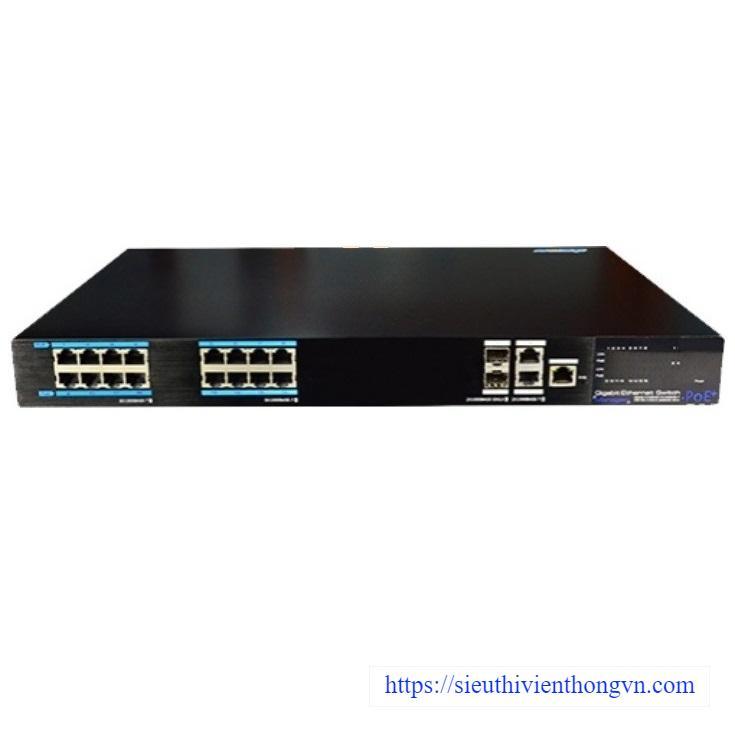

16-Port 10/100/1000Mbps PoE Managed Switch IONNET IGS-2016W (320)

The 16 ports PoE full Gigabit managed Ethernet switch, which provide 16* PoE Gigabit downlink Ethernet port, 2* Gigabit uplink optical fiber ports and 2* Gigabit uplink Ethernet ports. The Products support IEEE 802.3 af/at support Web layer-2 network management and PoE management. Products are widely used in security surveillance, network engineering projects and so on.

Features

- Provide 16* PoE Gigabit downlink Ethernet ports, 2* Gigabit uplink optical fiber ports and 2* Gigabit uplink Ethernet ports.

- Provide web - based layer 2 network management and PoE management by simple operation.

- Support high - speed data forwarding, very suitable for large flow of video data forwarding in security surveillance.

- Support recovery of IP address & user password by one key recovery button.

- Quick Installation, simple operation, convenient for wall/desk/rack installation.

Specifications

ModelIGS-2016W (320)
Downstream Ports16* 10/100/1000Base-T (PoE)
Uplink Ports2*1000Mbps SFP Port and 2*10/100/1000Base-T
Network StandardIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1X
Switch Capacity40Gbps
Throughput30Mpps
Switch Processing SchemeStore and Forward
Memory Buer12M
MAC Table16K
PoE Standard802.3af/at (PSE)
PsE TypeEnd- span
Power Pin Assignment1/2(+), 3/6(–)
PoE Power Output54VDC, 30 watts max
PoE Budge320 watts max
Lightning protection6KV Execute: IEC61000-4-5
ESD6KV Contact discharge
8KV Air discharge
Execute: IEC61000-4-2
Power Supply100~240VAC; 50/60Hz
Power Dissipation350W (Including PoE)
Working temperature-10°C~50°C
Storage temperature-40°C ~85°C
Humidity (Non condensin)5%-95%
Dimensions (LxWxH)442× 305×44.5mm
Weight4.35kg

- Bảo hành: 12 tháng.
