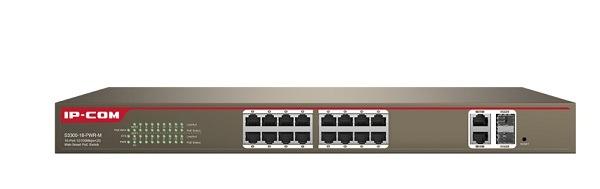

16-Port 10/100Mbps + 2 Gigabit Web Smart PoE Switch IP-COM S3300-18-PWR-M

16-Port 10/100Mbps + 2 Gigabit Web Smart PoE Switch IP-COM S3300-18-PWR-M

  • MS 000006069
  • IP-COM
Giá : Liên hệ

16-Port 10/100Mbps + 2 Gigabit Web Smart PoE Switch IP-COM S3300-18-PWR-M

16-Port 10/100Mbps + 2 Gigabit Web Smart PoE Switch IP-COM S3300-18-PWR-M

- Chuẩn kết nối: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1W, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at.

- Hỗ trợ 16 Fast Ethernet port POE +  2 GE/2 SFP ( COMBO) port.

- Công suất mỗi cổng < 40W.

- Tổng công suất 250W.

- Dung lượng chuyển đổi: 7.2Gbps.

- Tốc độ chuyển tiếp gói tin: 5.36Mpps.

- Hỗ trợ cổng VLAN.

- Nguồn điện: AC 100-240V 50/60Hz.

Đặc tính kỹ thuật

ModelS3300-18-PWR-M
Hardware Features
Standards&ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1W, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at
Switching capacity7.2 Gbps
Throughput5.36Mpps
Dimensions (W × D × H)440 x 284 x 44 mm
MTBF≥100,000 hours(about 11 years)
Interfaces16x10/100Mbps RJ45 Ports(Data/PoE)
2x10/100/1000Mbps RJ45 Ports(Data)
2x100/1000Mbps SFP Slot(Data)
(Auto Negotiation/Auto MDI/MDIX)
Port lightning protection≥6KV
Capacity- Wire-speed forwarding: Support
- Forwarding mode: Store-forward and cut-through
- Mac Address Table: 4K
PoE SupplyPort 1 to Port 16 support standard IEEE802.3at/af power (maximum power for each port is 38W), PoE power type is end-span(12+, 36- and 45+, 78- line pair)
Input VoltageAC:100-240V~ 50/60Hz
Power consumptionin full configuration: <250W
Power Supply: 230W
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Software Features
PoE managementSupport over temperature protection for PoE module
Support graphical management,
detection of PD equipment
VLANSupports up to 18 VLAN IDs Port VLAN
Supports up to 31 VLAN IDs 802.1Q VLAN
SecurityMAC-Port Binding
Link aggregationStatic Trunk Supports 3 groups of 4-Port trunk support
STPSTP/RSTP
IGMP SnoopingIGMP (v1/v2) Snooping
Port MirroringN: 1 port mirroring
QoS802.1p and DSCP priority re-marking
Flow control
Flexible queue scheduling algorithm can be set
based on port and queue, support SP, WRR,
Firmware upgradeUpgrade via the Web
Management and maintenanceSupport SNMP v1/v2 and WEB-based management
CertificationFCC, CE, RoHS

- Bảo hành: 24 tháng.
