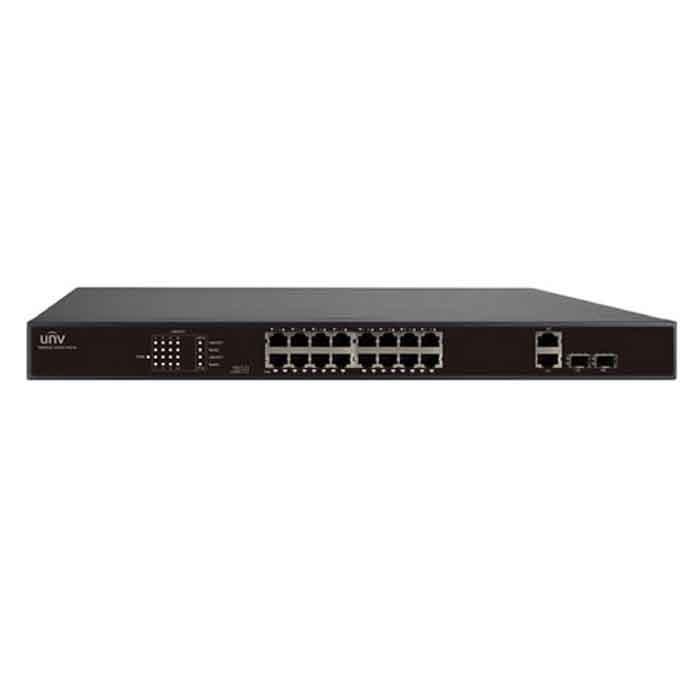

16-Port 10/100Mbps Ethernet PoE Switch UNV NSW2010-16T2GC-POE-IN
- 2 x 10/100Mbps cổng Ethernet, 2 x 1000Mbps Combo ports.
- 16 x 10/100Mbps cổng hỗ trợ PoE.
- Tối đa 30W cho một cổng. Tổng công suất 250W.
- Khoảng cách truyền lên tới 250 mét trên chế độ EXTEND.
- Dễ sử dụng, không cần cấu hình.
- Chất lượng cao với tất cả vỏ kim loại.
Đặc tính kỹ thuật
| Ports | 16×100Mbps PoE ports (RJ45) + 2×1000Mbps Combo ports |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az |
| Switching capacity | 7.2Gbps |
| Forwarding performance | 5.36Mpps |
| Packet Buffer | 4Mbit |
| MAC | 16K |
| Dimensions (W×D×H) | 440mm x 207mm x 45mm(17.3'×8.1'×1.8') |
| Weight | <4.2kg |
| Power supply | AC: 100-240V, 50/60Hz |
| PoE | 802.3at/af |
| Max. PoE Power | Max capacity: 250W Max capacity for single port: 30W |
| Cooling Fans | 2 |
| Mean Time Between Failure(MTBF) | >50000 hours |
| Operating temperature | 0°C-40°C (32°F-104°F) |
| Operating humidity | 10%～90% (noncondensing) |
| Storage humidity | 5%～90% (noncondensing) |
| Indicator | PWR: Steady on: AC input is normal Off: No AC input |
| PoE: Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal | |
| LINK/ACT: Off: No link Steady: Linked at 10/100Mbps Flashing: Transmitting data | |
| Speed: Off: Linked at 10/100Mbps On: Linked at 1000Mbps | |
| Working Mode | Default (Normal mode) : All ports can communicate with each other. VLAN (Secure mode): Downlink ports can communicate only with uplink ports. EXTEND (Surveillance mode): Transmission distance up to 250 meters. |
- Bảo hành: 02 năm.
