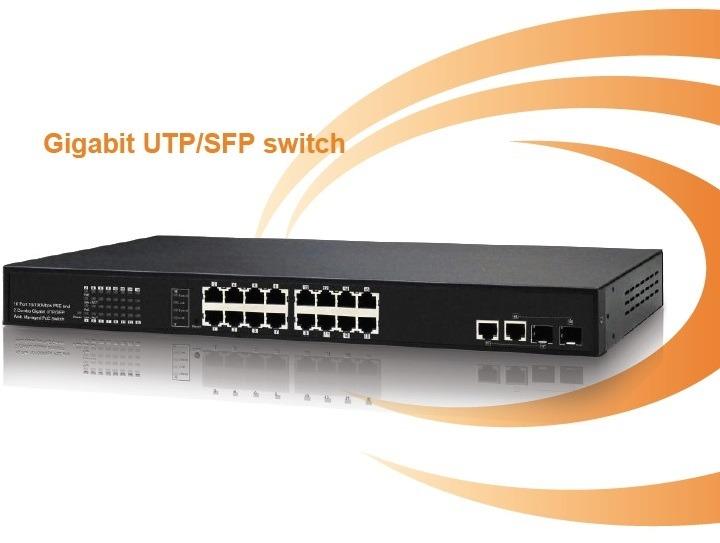

16-Port 10/100Mbps PoE Switch IONNET IFS-1616 (250Watt)
– Bao gồm 16-Port PoE, công suất 250W
– 16 ports 10/100Mbps Switch with 16 ports IEEE802.3af/ 802.3at (PoE+)
– Max 30 watt per port
– Metal case, Rackmount Design 1U
OverView
IFS-1616 (250) series are 16 10/100M port Power over Ethernet which consists of 16 PSE/PoE ports. The models compliant to POE IEEE 802.3af, it defines new green power saving idea on PSE Port. That can solve the limitation of the power outlet location and offer the system relocation easily.
Features
– 16 Port PSE/ PoE function, compliant with IEEE-802.3af class3 /class 2 / class 1 and IEEE802.3at
– Supporting the power up 30Watt for each PSE/PoE port
– Providing 16 10/100Mbps switching ports
– Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX
– Comply with IEEE 802.3x Flow control; back pressure for Half-duplex and for Full-duplex mode
– All ports support Auto-MDIX function
– Being dedicated 200Mbps Full-duplex bandwidth to the each port
– Broadcast storm control and supporting store & forward operation
– Non-blocking & Non-head-of-line blocking full-wire speed forwarding
– Auto-learning networking configurations
– Built-in 4K MAC learning table, 2.75M bits buffer memory
– Support packet length up to 1536Bytes
– Filtering/Forwarding Rate: 1000Mbps/1,488,000pps; 100Mbps/148,800pps; 10Mbps/14,880pps
– Status LEDs: System Power, Link/Activity, and PoE/PSE on line
– Network Transmission Media: 10Base-T Cat. 3, 4, 5 UTP/STP; 100Base-TX Cat. 5 UTP/ STP; 1000BASE-T Cat. 5E UTP/STP.
– Internal Power supply: AC input (90~260V/AC, 50~60Hz) UL Safety
– Operating Temperature: 0°C ~ 40°C
– Storing Temperature: -20°C ~ 90°C
– Humidity: 10% ~90% RH (Non-condensing)
– Dimension (L x W x H): 440 x 220 x 44 mm (1U high)
– Power supply: 250Watt
– Weight: 3.5 kg
– Safety & EMI Certificates: CE & FCC
– Smart plug & play
Spectification
Standards | IEEE 802.3 10BaseT |
IEEE 802.3u 100BaseTX/100BaseFX | |
IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX | |
IEEE 802.1x / IEEE 802.3af | |
Features | Number of Ports: 16 10/100BaseT with RJ-45 Connector 16 PSE ports with RJ-45 Connector |
Data Transfer Rate | Ethernet: |
10Mbps/Half-Duplex | |
20Mbps/Full-Duplex | |
Fast Ethernet: | |
100Mbps/Half-Duplex | |
200Mbps/Full-Duplex | |
Gigabit: | |
1000Mbps/Half-Duplex | |
2000Mbps/Full-Duplex | |
Transmission Media | 10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m |
100BaseTX Cat. 5 UTP/STP, up to 100 m | |
Led Indicators | Per Port: |
(TX): Link/Act, PoE | |
Per Unit: Power | |
Power Requirement | AC input (90~260V/AC, 50~60Hz) UL Safety |
Power supply | 250Watt |
Dimensions | 440 x 220 x 44 mm (L x W x H) |
Weight | 3.5 kg |
Operating Temperature | 0 to 40°C |
Storage Temperature | -20 to 90°C |
Humidity | 10 to 90% RH (non-condensing) |
Certifications | FCC, CE |
– Sản xuất tại Taiwan
– Bảo hành: 12 tháng
