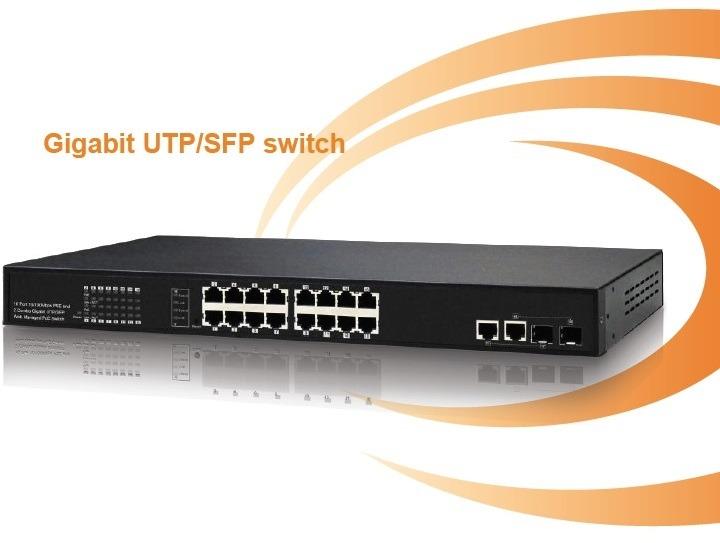

16-Port 10/100Mbps PoE Switch IONNET IFS-1816 (130Watt)

16-Port 10/100Mbps PoE Switch IONNET IFS-1816 (130Watt)

  • MS 000006708
  • IONNET
Giá : 8,380,000 vnđ (Đã bao gồm VAT)

16-Port 10/100Mbps PoE Switch IONNET IFS-1816 (130Watt)

16-Port 10/100Mbps PoE Switch IONNET IFS-1816 (130Watt)

-       Bao gồm 16-Port PoE, công suất 130 Watt.

-       Nguồn điện: 90-260VAC.

-       16port 10/100M PSE and 2 combo Gigabit UTP/SFP switch

-       PoE

-       Support 802.3af/at

-       POE+ green Power saving

OverView

-       IFS-1816 (130)series are 16 10/100M port Power over Ethernet which consists of 16 PSE/PoE ports and support 2 combo Gigabit uplink ports. The models compliant to POE IEEE 802.3af, it defines new green power saving idea on PSE Port. That can solve the limitation of the power outlet location and offer the system relocation easily.

Features

-       16 Port PSE/ PoE function, compliant with IEEE-802.3af class3 /class 2 / class 1 and IEEE802.3at

-       Supporting the power up 30Watt for each PSE/PoE port

-       Providing 16 10/100Mbps switching ports and 2 combo gigabit UPT/SFP open slot

-       Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX

-       Comply with IEEE 802.3x Flow control; back pressure for Half-duplex and for Full-duplex mode

-       All ports support Auto-MDIX function

-       Being dedicated 200Mbps Full-duplex bandwidth to the each port

-       Broadcast storm control and supporting store & forward operation

-       Non-blocking & Non-head-of-line blocking full-wire speed forwarding

-       Auto-learning networking configurations

-       Built-in 4K MAC learning table, 2.75M bits buffer memory

-       Support packet length up to 1536Bytes

-       Filtering/Forwarding Rate: 1000Mbps/1,488,000pps; 100Mbps/148,800pps; 10Mbps/14,880pps

-       Status LEDs: System Power, Link/Activity, and PoE/PSE on line

-       Network Transmission Media: 10Base-T Cat. 3, 4, 5 UTP/STP; 100Base-TX Cat. 5 UTP/STP; 1000BASE-T Cat. 5E UTP/STP.

-       Internal Power supply: AC input (90~260V/AC, 50~60Hz) UL Safety

-       Operating Temperature: 0℃ ~ 40℃

-       Storing Temperature: -20℃ ~ 90℃

-       Humidity: 10% ~90% RH (Non-condensing)

-       Dimension (L x W x H): 440mmX220mmx44mm (1U high)

-       Power supply : 250Watt

-       Weight: 3.5Kg

-       Safety & EMI Certificates: CE & FCC

-       Smart plug & play

Specification

Standards

IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX/100BaseFX
IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX
IEEE 802.1x / IEEE 802.3af

Features

Number of Ports:
16 10/100BaseT with RJ-45 Connector with 2 combo RJ-45 / SFP
16 PSE ports with RJ-45 Connector

Data Transfer Rate

Ethernet:
10Mbps/Half-Duplex
20Mbps/Full-Duplex
Fast Ethernet:
100Mbps/Half-Duplex
200Mbps/Full-Duplex
Giga:
1000Mbps/Half-Duplex
2000Mbps/Full-Duplex

Transmission Media

10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m
100BaseTX Cat. 5 UTP/STP, up to 100 m

Led Indicators

Per Port:
(TX): Link/Act, PoE
Per Unit: Power

Power Requirement

AC input (90~260V/AC, 50~60Hz) UL Safety

Power supply

130Watt

Dimensions

440 x 220 x 44 mm (L x W x H)

Weight

3.5 kg

Operating Temperature

0 to 40℃

Storage Temperature

-20 to 90℃

Humidity

10 to 90% RH (non-condensing)

Certifications

FCC, CE



-       Sản xuất tại Taiwan.

-       Bảo hành: 12 tháng.
