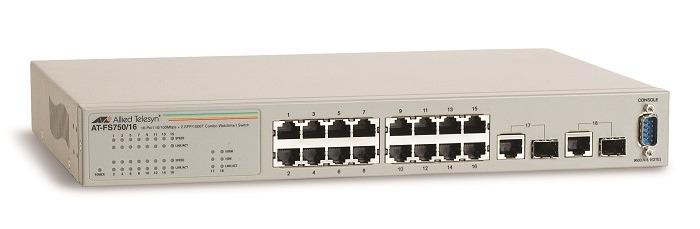

16-port 10/100TX Fast Ethernet WebSmart Switch ALLIED TELESIS AT-FS750/16
- 16 10/100TX ports.
- 2 SFP/1000T Combo ports.
- Non-Blocking Architecture.
- Auto MDI/MDIX.
- Web Based Management.
- 802.1x Security.
- Up to 8K MAC addresses.
- Port-Based VLAN’s (up to 64 groups).
- Link Aggregation.
- Port Setting (Speed, Availability, Flow Control).
- Port-Trunking.
- Port Mirroring.
- 802.1P QoS.
- Login ID/Password.
- Statistics & Diagnostics.
- RS232 CLI Interface.
- Rackmount Kit.
- Limited Lifetime Warranty.
Đặc tính kỹ thuật
| Performance | |
| Port | 16 10/100TX ports + 2 SFP/1000T Combo ports |
| MAC addresses | 8K |
| VLAN IDs available | 4 K |
| Max VLANs | 200 tagged + 56 port-based |
| Multicast | Up to 32 static multicast groups |
| Flash | 4 MB |
| SDRAM | 16MB |
| Switch memory | 2 MB embedded |
| Packet buffer | 256 KB |
| Throughput | 5.4 Mpps |
| Switching capacity | 7.2 Gbps |
| Standards and Compliance | |
| IEEE 802.3 | CSMA/CD |
| IEEE 802.3i | 10T |
| IEEE 802.3u | 100TX |
| IEEE 802.3z | 1000SX/LX |
| IEEE 802.3u/ab | 1000T |
| IEEE 802.3x | Flow control |
| IEEE 802.1p | Prioritization (four queues) |
| IEEE 802.1x | Authentication |
| IEEE 802.1d | Bridging |
| IEEE 802.3ad | Link aggregation |
| IEEE 802.1Q | Tagged VLAN |
| IEEE 802.1d | Spanning-Tree |
| IEEE 802.1w | Rapid Spanning-Tree |
| Power Characteristics | |
| 10/100TX | RJ-45 |
| 1000T | RJ-45 |
| SFP | 100FX, 1000SX, 1000LX, 10/100/1000T |
| Environmental Specifications | |
| Operating temp | 0 to 45ºC |
| Non-operating temp | -20 to 70ºC |
| Operating humidity | 5-90% non-condensing |
| Non-operating humidity | 5-95% non-condensing |
| Physical Characteristics | |
| Dimensions | 352 x 256 x 432 mm |
| Weight | 2.38 kg |
- Bảo hành: 12 tháng.
