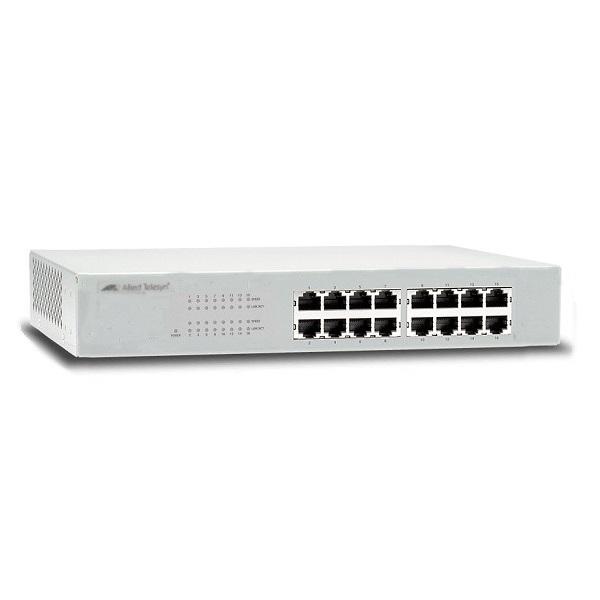

16-port 10/100TX Unmanaged Fast Ethernet Switch ALLIED TELESIS AT-FSW716V3
- 16 ports 10/100TX.
- Wirespeed technology.
- Non-blocking architecture.
- Auto-negotiation ports.
- Auto MDI/MDI-X ports.
- Half and full-duplex flow control.
- Internal power supply.
- Sturdy metal case.
- Rack-mountable.
Đặc tính kỹ thuật
| Performance | |
| Ethernet | 14880pps for 10Mbps |
| Fast Ethernet | 148800pps for 100Mbps |
| MAC addresses | 8K |
| Packet bufer | 1.25 Mbit |
| Support | Half/full-duplex, Auto negotiation, Auto MDI/MDI-X on all ports |
| Standards and Compliance | |
| IEEE 802.3 | 10T Ethernet |
| IEEE 802.3u | 100TX Fast Ethernet |
| IEEE 802.3x | Flow control |
| Interface connections | |
| 10/100TX | RJ-45 |
| Power characteristics | |
| Voltage | 100-240 VAC, 3.3V/5A |
| Frequency | 50-60 Hz |
| Environmental Specifications | |
| Operating temperature | 0 to 50ºC |
| Non-operating temp | -40 to 70ºC |
| Operating humidity | 10-90% non-condensing |
| Storage humidity | 5-90% non-condensing |
| Physical Characteristics | |
| Dimensions | 280 × 170 × 44 mm |
| Weight | 1.6 kg |
- Bảo hành: 12 tháng.
