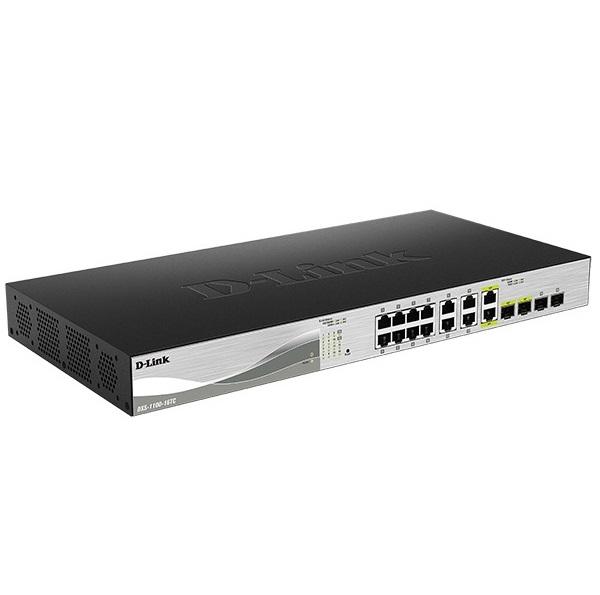

16-Port EasySmart 10-Gigabit Ethernet Smart Managed Switch D-Link DXS-1100-16TC
-12-port UTP 10GBASE-T, 2-port 10G SFP+, 2-port UTP 10GBASE-T/10G SFP+ Combo (EU 2 round pin+ UK 3-pin Power Cord, H/W: A1, Rackmountable).
-The DXS-1100-16TC switch is an EasySmart Layer 2 10 Gb Ethernet switch which provides an entry-level solution for Small and Medium Businesses wishing to deploy 10 Gb Ethernet.
-It is ideal for server farms or as a network aggregation device and provides a cost-effective but feature-rich solution to 10 Gb Ethernet requirements.
Energy Saving
-The DXS-1100-16TC incorporates D-Link Green technology for increased energy efficiency.
-Smart fans and temperature sensors ensure that the fans are running at the optimum speed to cool the system.
-If the environment temperature is suitable and the switch is at low utilization, the smart fans can reduce their speed, resulting in lower power consumption and noise output.
-The Link Status feature can reduce power utilization by powering-down inactive ports and putting them into sleep mode.
-The DXS-1100-16TC also takes its Green credentials one step further by incorporating a chipset with advanced silicon technology for reduced power utilization.
Easy to Deployment
-The DXS-1100-16TC supports an intuitive client-based D-Link Network Assistant Utility and a web-based management interface.
-The client-based utility allows customers to discover all switches in the D-Link Smart Switch family within the same L2 network segment.
-With this utility, users do not need to change the IP address of their PC, and this also makes initial setup of the Smart Switches quick and easy.
-Switches within the same L2 network segment that are connected to the user’s PC are displayed on-screen for instant access.
-This allows for extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades.
-The graphic web-based management interface provides a user-friendly interface that enables network administrators to remotely control their network down to the port level.
Auto Surveillance VLAN and Bandwidth Control
-The DXS-1100-16TC supports Auto Surveillance VLAN (ASV), and Auto Voice VLAN, which are best suited for Voice over IP (VoIP) and video surveillance deployments.
-Auto Surveillance VLAN is a new, industry-leading technology that the DXS-1100-16TC Gigabit Ethernet Smart Switch provides.
-This technology consolidates data and surveillance video transmission through a single unit, thus sparing businesses the expense of dedicated hardware and facilities.
-ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data.
-The Auto Voice VLAN technology enhances VoIP functionality by automatically placing voice traffic from an IP phone into an assigned VLAN.
-With higher priority and individual VLAN, these features guarantee the quality and security of VoIP traffic across the network. In addition, Bandwidth Control can reserve bandwidth on a per port basis for important functions that require larger bandwidth or might have high priority.
Advanced Features
-The DXS-1100-16TC is equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping.
-Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only.
-Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded.
-IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput.
Easy Troubleshooting
-The DXS-1100-16TC features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
-Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port.
-Cable Diagnostics help network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Technical Specifications
| Hardware Version | A1 |
| Size | 17-inch rackmount width |
| 1U height | |
| Number of Ports | 12 port 10GBASE-T |
| 2 port 10GBASE-T/SFP+ combo design | |
| 2 port SFP+ | |
| Port Functions | IEEE 802.3u 100BASE-TX Fast Ethernet |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
| IEEE 802.3az compliance | |
| IEEE 802.3an 10GBASE-T 10GbE over copper | |
| IEEE 802.3ae 10GbE over fiber | |
| IEEE 802.3z 1000BASE-X | |
| Auto MDI/MDIX support for 1000/10GBASE-T | |
| Switching Capacity | 320 Gbps |
| Maximum Forwarding Rate | 238.095 Mpps |
| MAC Address Table Size | 16K entries |
| Packet Buffer | 2 Mbps |
| Flash Memory | 2 Mbytes |
| Maximum Power Consumption | 84.1 W |
| Standby Power Consumption | 26.7 W |
| Power Input | 100 to 240 V AC |
| MTBF | 489,221 hours |
| Acoustics | 45.9 dB(A) |
| Heat Dissipation | 277.54 BTU/h |
| Weight | 2.94 kg |
| Dimensions | 441 x 44 x 210 mm |
| Ventilation | 2 x Smart Fans |
| Temperature | Operating: -5° to 50°C |
| Storage: -40° to 70°C | |
| Humidity | Operating: 0% to 95% non-condensing |
| Storage: 0% to 95% non-condensing | |
| VLAN | 802.1Q VLAN |
| Port-based VLAN | |
| 128 VLAN groups | |
| Voice VLAN | |
| Auto Surveillance VLAN | |
| Asymmetric VLAN |
-Bảo hành: 36 tháng.
