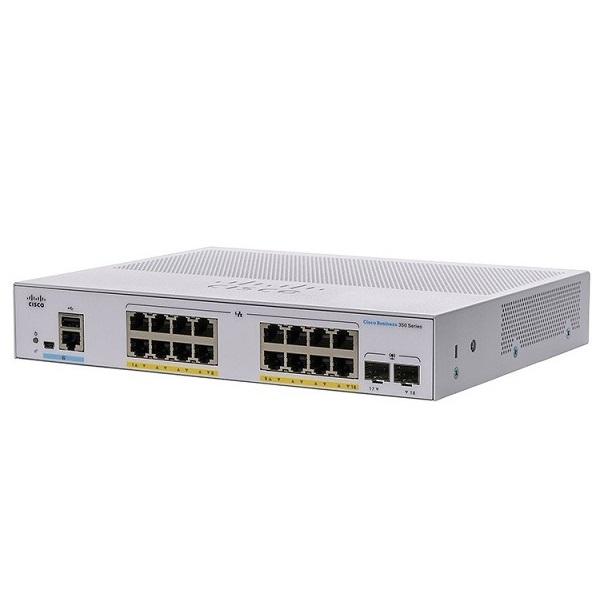

18-port Gigabit Ethernet PoE Managed Switch CISCO CBS350-16P-2G-EU
- Support 16 Gigabit PoE+ ports with 120W power budget and 2 Gigabit SFP ports.
- Switching Capacity: 36Gbps.
- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes.
- MAC table: 16K addresses.
- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.
- Flash: 256MB.
- CPU: 800MHz ARM.
- DRAM: 512MB.
- Dimensions (W x D x H): 268 x 297 x 44 mm.
- Weight: 2.38kg.
Đặc tính kỹ thuật
| Model | CBS350-16P-2G-EU |
| Performance | |
| Capacity in millions of packets per second (mpps) (64-byte packets) | 26.78 mpps |
| Switching capacity | 36Gbps |
| General | |
| Jumbo frames | Frame sizes up to 9K bytes. The default MTU is 2K bytes |
| MAC table | 16K addresses |
| Hardware | |
| Total System Ports | 18 x Gigabit Ethernet |
| RJ-45 Ports | 16 x Gigabit Ethernet |
| Combo Ports (RJ45 + Small form-factor pluggable [SFP]) | 2 x SFP |
| Number of Ports That Support PoE | 16 |
| Power Dedicated to PoE | 120W |
| Console port | Cisco standard mini USB Type-B/RJ45 console port |
| USB slot | USB Type-A slot on the front panel of the switch for easy file and image management |
| Buttons | Reset button |
| Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
| LEDs | System, Link/Act, PoE, Speed |
| Flash | 256 MB |
| CPU | 800 MHz ARM |
| DRAM | 512 MB |
| Packet buffer | 1.5 MB |
| Power consumption (worst case) | |
| System Power Consumption | 110V=24.51W 220V=25.01W |
| Power Consumption (with PoE) | 110V=156.4W 220V=154.5W |
| Heat Dissipation (BTU/hr) | 536.39 |
| Environmental | |
| Unit dimensions (W x D x H) | 268 x 297 x 44 mm |
| Unit weight | 2.38 kg |
| Power | 100-240V, 50-60 Hz, internal, universal |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature | -5° to 50°C |
| Storage temperature | -25° to 70°C |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| Acoustic noise and Mean Time Between Failure (MTBF) | |
| FAN (Number) | Fanless |
| MTBF at 25°C (hours) | 706,983 |
- Bảo hành: 12 tháng.
