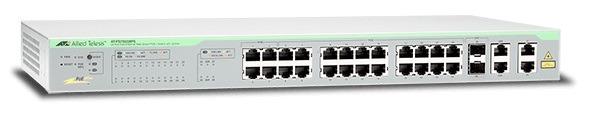

24+4 port Fast Ethernet PoE Websmart Switch ALLIED TELESIS AT-FS750/28PS
- 24-port 10/100TX + 2 10/100/1000T + 2 1000T/SFP combo WebSmart PoE switch.
- The Allied Telesis AT-FS750/28PS WebSmart network switch features PoE+ for connectivity with security cameras, VoIP phones, RFID readers, and wireless access points.
- The FS750PS Series is a costeffective solution for SMB, retail stores, and at the edge of the network.
VLAN
- IEEE 802.1Q tagged.
- Port-based.
- Up to 256 groups.
Quality of Service Classification
- IEEE 802.1p tagging.
- Port-based priority.
- Four priority queues per port.
IP Multicast Support (IPv4)
- IGMP snooping (v1/v2).
- Static multicast group (up to 256).
- Spanning-Tree, IEEE 802.1d/w/s.
IEEE 802.3ad Link Aggregation, IEEE 802.1x Port-based and MAC-based, Network Access Control
- Local authentication server (MD5 only).
- Remote authentication through RADIUS.
- Dynamic VLAN assignment.
Management Features
- Web-based configuration.
- Discovery support.
- SNMP trap view.
- LLDP.
- Firmware upgrade by FTP and HTTP.
- Configuration backup/restore by FTP and HTTP.
- Factory reset.
- Password access control and restricted IP access list.
- SNMPv1/v2c/v3.
- Management IP: DHCP client for Web.
- Management and static IP setting.
- Syslog support.
- System time configuration (SNTP, manual).
MIBs
- RFC 1213 MIB-II.
- RFC 1643 Ethernet MIB.
- RFC 1493 Bridge MIB.
- RFC 2131 DHCP client.
Đặc tính kỹ thuật
| Model | AT-FS750/28PS |
| Interface Connections | 24-port 10/100TX + 2 10/100/1000T + 2 1000T/SFP |
| combo WebSmart PoE switch | |
| MAC addresses | 8 |
| VLAN IDs available | 4 |
| Max VLANs | 256 |
| Packet buffer | 4.1 Mbit |
| DRAM | 128MB |
| Flash | 16MB |
| Environmental Compliance | RoHS, Eu-RoHS, China RoHS, WEEE |
| MTBF | 263,000 hours, Telcordia SR-332 |
| Brackets | Wall-mount or desktop |
| All units come with wall /19 in rack-mount brackets | |
| Max PoE power | 193W |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 5% to 90% non-condensing |
- Bảo hành: 12 tháng.
