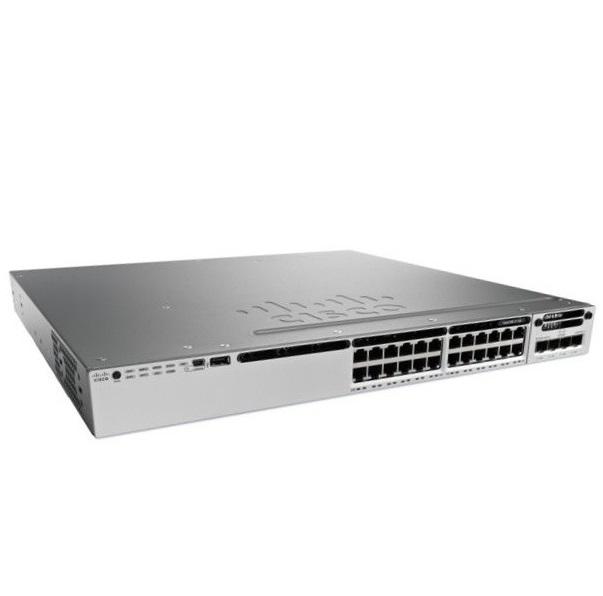

24-Port 10/100/1000 Ethernet IP Service Switch Cisco WS-C3850-24T-E
- Cisco Catalyst WS-C3850-24T-E is stackable enterprise level switch and integrated with 24 Ethernet ports in IP service feature set. It enables sophisticated layer2-4 switching capability by providing the optimal solution for access layer and aggregation layer.
Specifications
| Model | WS-C3850-24T-E |
| Feature Set | IP Service |
| Enclosure Type | 1 RU |
| Ports | 24 x 10/100/1000 Ethernet ports |
| Max. stacking number | 9 |
| Stack bandwidth | 480 Gbps |
| Switching Capacity | 92 Gbps |
| Forwarding performance | 68.4 Mpps |
| Jumbo Frame Support | 9198 bytes |
| RAM | 4GB |
| Flash Memory | 2GB |
| Authentication Method | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ |
| Advanced Switching | Layer 3 |
| Routing Protocol | BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, RIPng |
| MAC Address Table Size | 32000 entries |
| Features | VLAN, ARP, ACL, IPv4, IPv6, Link Aggregation Control Protocol (LACP), MLD snooping, Multiple Spanning Tree Protocol, QoS, Port Aggregation Protocol (PAgP), Cisco StackPower technology, Remote Switch Port Analyzer (RSPAN), Uni-Directional Link Detection (UDLD), Virtual Route Forwarding-Lite (VRF-Lite), Cisco StackWise-480 technology, layer 3 load balancing, trunking, Flexible NetFlow (FNF), IGMP snooping |
| Remote Management Protocol | CLI, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet |
| Number of AP per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Power Supply | 110 to 220 VAC |
| Power Consumption | 350W |
| Dimensions | 4.45 x 44.5 x 45 cm |
| Weight | 7.2kg |
- Bảo hành: 12 tháng.
