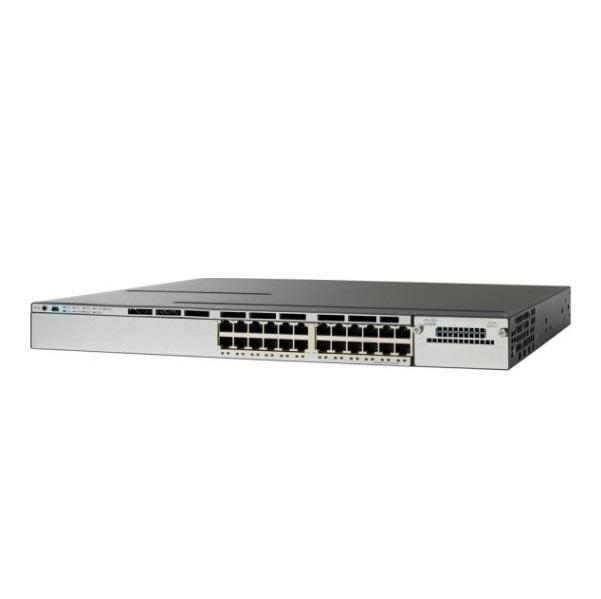

24-Port 10/100/1000 Ethernet PoE+ Switch Cisco Catalyst WS-C3850-24P-L
- Cisco Catalyst 3850 24 Port PoE LAN Base.
- Cisco Catalyst WS-C3850-24P-L is next generation stackable enterprise level switch and integrated with 24 Ethernet POE+ ports with upgradeable LAN base IOS image.
- WS-C3850-24P-L is designed for access layer with 255 VLANs and IEEE802.3at POE+ standard supporting.
Specification
| Model Info | WS-C3850-24P-L |
| Enclosure type | Rack-mountable - 1U |
| Ports | 24 x 10/100/1000 (POE+) |
| Network management Interface | Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE Power | 435W |
| Switching Capacity | 92Gbps |
| Maximum stacking number | up to 9 switches with same IOS feature set in same series |
| Stack Bandwidth | 480Gbps |
| Forwarding Performance | 68.4Mpps |
| FNF entries | 24,000 flows |
| Maximum VLANs IDs | 1000 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| RAM | 4G |
| Flash Memory | 2G |
| Number of AP per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | up to 20Gbps |
| Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
| Rack Mounting Kit | optional |
| Dimension (WxDxH) | 44.5x44.5x4.5 cm |
| Weight | 7.4 kg |
- Bảo hành: 12 tháng.
