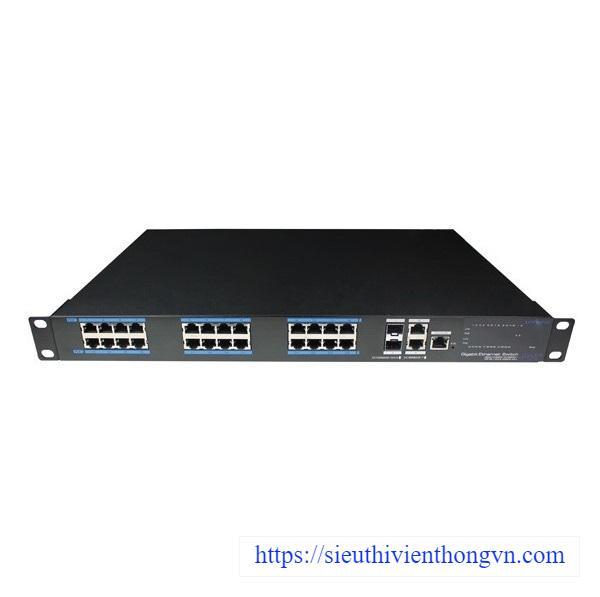

24-Port 10/100/1000Mbps PoE Managed Switch IONNET IGS-2824W (450)
- The 24 ports PoE full Gigabit managed Ethernet switch, which provide 24* PoE Gigabit downlink Ethernet port, 2* Gigabit uplink optical fiber ports and 2* Gigabit uplink Ethernet ports.
- The Products support IEEE 802.3 af/at, support Web layer – 2 network management and PoE management. Products are widely used in security surveillance, network engineering projects and so on.
Features
- Provide 24* PoE Gigabit downlink Ethernet ports, 2* Gigabit uplink optical fiber ports and 2* Gigabit uplink Ethernet ports.
- Provide web - based layer 2 network management and PoE management by simple operation.
- Support high speed data forwarding, very suitable for large flow of video data forwarding in security surveillance.
- Support recovery of IP address & user password by one key recovery button.
- Quick Installation, simple operation, convenient for wall/desk/rack installation.
Specifications
| Model | IGS-2824W (450) |
| Downstream Ports | 24* 10/100/1000Base-T (PoE) |
| Uplink Ports | 2*1000Mbps SFP Port and 2*10/100/1000Base-T |
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1X |
| Switch Capacity | 56Gbps |
| Throughput | 42Mpps |
| Switch Processing Scheme | Store and Forward |
| Memory Buffer | 12M |
| MAC Table | 16K |
| PoE Standard | 802.3af/at (PSE) |
| PsE Type | End- span |
| Power Pin Assignment | 1/2(+), 3/6(–) |
| PoE Power Output | 54VDC, 30 watts max |
| PoE Budge | 450 watts max |
| Lightning protection | 6KV Execute: IEC61000-4-5 |
| ESD | 6KV Contact discharge |
| 8KV Air discharge | |
| Execute: IEC61000-4-2 | |
| Power Supply | 100~240VAC; 50/60Hz |
| Power consumption | < 480W (Including PoE) |
| Working temperature | -10°C~50°C |
| Storage temperature | -40°C ~85°C |
| Humidity (Non condensin) | 5%-95% |
| Dimensions (LxWxH) | 442× 305×44.5mm |
| Weight | 4.35kg |
- Bảo hành: 12 tháng.
