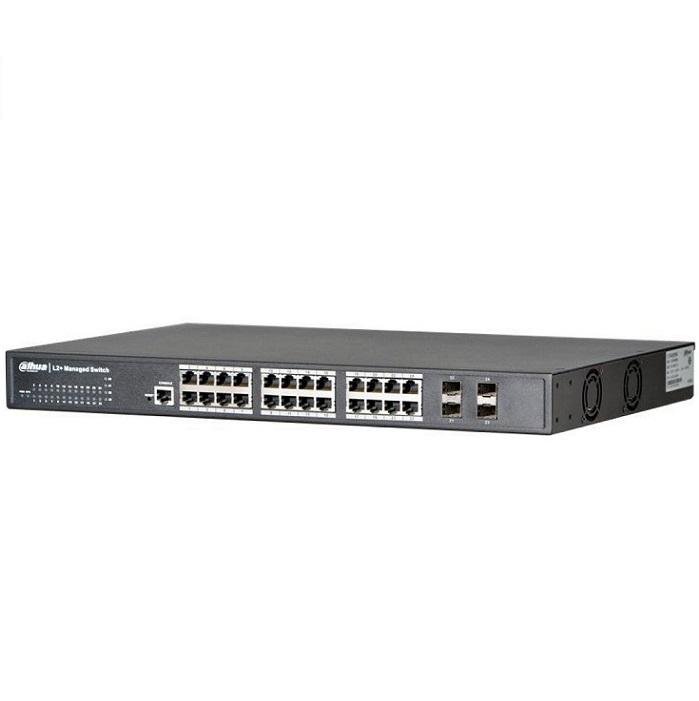

24 port 10/100/1000Mbps Switch DAHUA PFS5424-24T
-Tính năng L2+ mạnh mẽ.
-Khả năng xử lý mạnh mẽ.
-Chiến lược kiểm soát an ninh hoàn hảo.
-Cơ chế bảo vệ hoàn hảo.
-Quản lý và bảo trì thuận tiện.
-Đáp ứng tiêu chuẩn IEEE 802.3ad, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3az.
-Cổng giao tiếp: 10/100/1000BASE-T port x 20, Combo 1000BASE-T/SFP port x 4.
-Khả năng chuyển đổi: 350Gbps.
-Khả năng lưu trữ MAC: 32K.
-Môi trường hoạt động: Độ ẩm 5%-95%.
-Nhiệt độ: -10ºC - 55ºC.
-Nguồn điện: 100 ~ 240VAC.
-Kích thước: 440 x 285 x 44.5mm.
-Trọng lượng: < 5kg.
Đặc tính kỹ thuật
| Model | DH-PFS5424-24T |
| Interfaces | 10/100/1000BASE-T port x 20 |
| Combo 1000BASE-T/SFP port x 4 | |
| Management Ports | One Console port |
| Reset Button | One Restore Factory Default Button |
| Switching Capacity | 350Gbps |
| Packet Forwarding Rate | 35.7Mpps |
| Working Temperature | -10~55°C |
| Storage Temperature | -40~70°C |
| Operating Humidity | 5% ~ 95% Non-condensing |
| Dimensions | 440 x 285 x 44.5mm |
| Weight | <5Kg |
| Input Voltage | 110 ~ 240VAC/ 50 ~ 60Hz |
| Power Consumption | <50W |
| Service Characteristics | |
| Protocol Standard | IEEE 802.3ad,IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3az |
| MAC Table | 32K |
| VLAN | 4K |
| Port-based VLAN | |
| 802.1Q Standard VLAN | |
| MAC-based VLAN | |
| Protocol-based VLAN | |
| Spanning Tree | STP |
| RSTP | |
| MSTP | |
| Loop Protection | ERPS |
| Loopback Detection | Support |
| port Aggregation | Up to 14 aggregation groups, and up to 8 GE ports for each group; |
| LACP; Manual aggregation | |
| Mirroring | Support many-to-one port mirroring, no limit for the quantity of mirroring source port |
| Flow Control | Support half-duplex based on back pressure type control |
| Support full duplex based on PAUSE frame | |
| Port Speed Limit | Support |
| IP Routing | Static Routing |
| Multicast | IGMP Snooping |
| MVR (Multicast VLAN Registration) | |
| DHCP | DHCP Client |
| DHCP Server | |
| DHCP Snooping | |
| Storm Suppression | Support suppression upon broadcast, multicast, unicast |
| Security Features | Hardware supports IP ACL, MAC ACL, VLAN ACL |
| Hardware supports IP+MAC binding based on port; | |
| Support IP Source Guard | |
| Support ARP Detection | |
| Support IEEE802.1x port authentication | |
| Support Radius authentication | |
| Support the user classification management, and password protection | |
| System Maintenance | Support the configuration file upload/download |
| Support the updated packet upload | |
| Restore default configuration via WEB | |
| Support system logs | |
| PING | |
| Network Management | WEB (http and https protocol) |
| CLI | |
| Telnet | |
| SSH 2.0 | |
| SNMP | |
| RMON | |
| LLDP | |
| Support the NTP client | |
-Sản xuất tại Trung Quốc.
-Bảo hành: 24 tháng.
