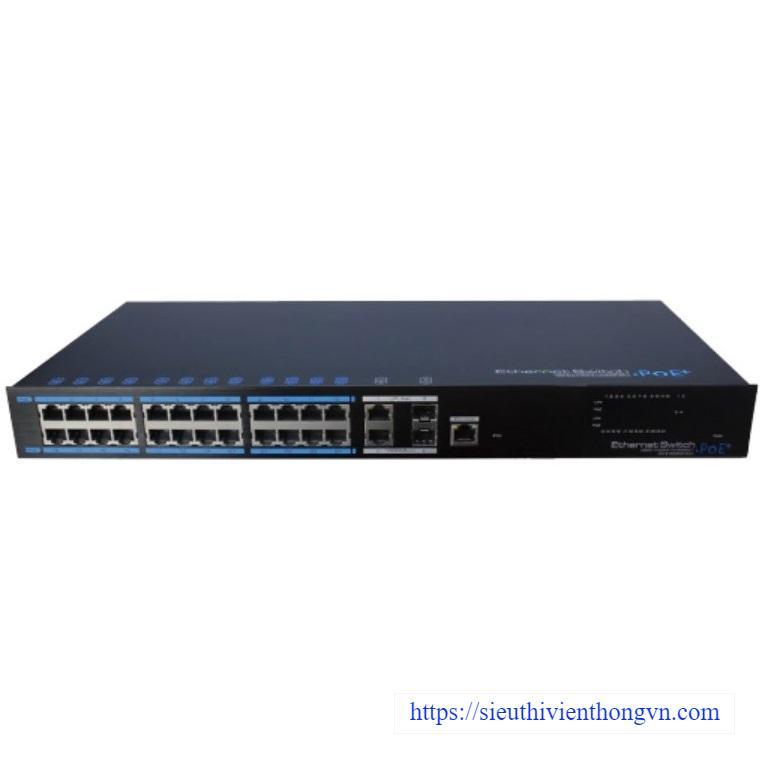

24-Port 10/100Mbps PoE Managed Switch IONNET IFS-2824W (450)
- IONNET-IFS-2824W (450) is a 24-port managed PoE Ethernet switch, provides 24*100Mbps downlink PoE Ethernet ports with IEEE802.3af/at supporting and 2*1000Mpbs uplink optical ports and 2*1000Mpbs uplink Ethernet ports.
- The switch support Layer 2 network management and PoE management based on web and provides high-speed data forwarding. It is widely used in security surveillance, network engineering projects and so on.
Features
- Provides 24*10/100Mbps downlink PoE Ethernet ports and 2*10/100/1000Mbps uplink Ethernet ports; 2* 1000Mbps uplink SFP ports.
- Provide web-based layer 2 network management and PoE management by simple operation.
- Support high-speed data forwarding, perfectly designing for large flow of video data forwarding in security surveillance.
- Support one-key recovery of IP address & user password.
- Excellent isolated circuit protection, lightning protection up to 2 KV.
- Quickly fixing, easily operation and convenient for wall/ desk/ rack installation.
Specifications
| Model | IFS-2824W (450) |
| Downstream Ports | 24* 10/100Base-TX (PoE) |
| Uplink Ports | 2*1000Mbps SFP Port and 2*10/100/1000Base-T |
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1X |
| Switch Capacity | 12.8Gbps |
| Throughput | 9.52Mpps |
| Switch Processing Scheme | Store and Forward |
| Memory Buffer | 12M |
| MAC Table | 16K |
| PoE Standard | 802.3af/at (PSE) |
| PsE Type | End- span |
| Power Pin Assignment | 1/2(+), 3/6(–) |
| PoE Power Output | 54VDC, 30 watts max |
| PoE Budge | 450 watts max |
| Lightning protection | 6KV Execute: IEC61000-4-5 |
| ESD | 6KV Contact discharge |
| 8KV Air discharge | |
| Execute: IEC61000-4-2 | |
| Power Supply | 100~240VAC; 50/60Hz |
| Power consumption | < 480W (Including PoE) |
| Working temperature | -10°C~50°C |
| Storage temperature | -40°C ~85°C |
| Humidity (Non condensin) | 5%-95% |
| Dimensions (LxWxH) | 442× 255×44.5mm |
| Weight | 3.73kg |
- Bảo hành: 12 tháng.
