24-port 10/100Mbps Switch Cisco SF300-24 (SRW224G4-K9)

24-port 10/100Mbps Switch Cisco SF300-24 (SRW224G4-K9)

  • MS 000008217
  • CISCO
Giá : 4,740,000 vnđ (Đã bao gồm VAT)

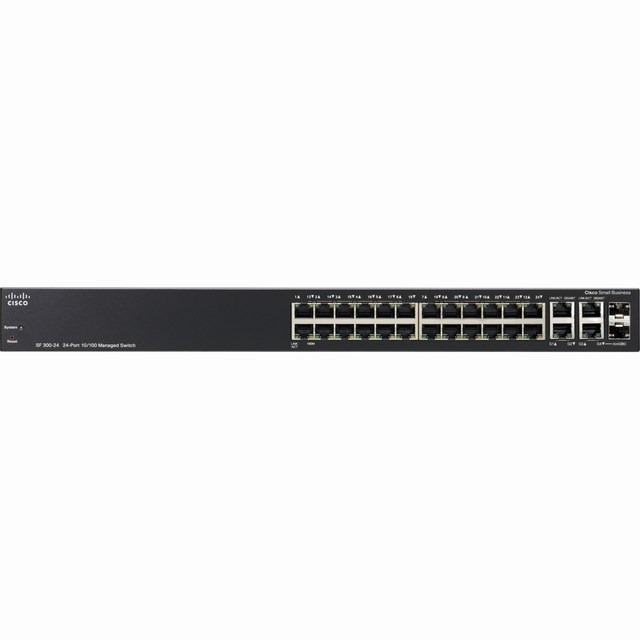

24-port 10/100Mbps Switch Cisco SF300-24 (SRW224G4-K9)

24-port 10/100Mbps Managed Switch CISCO SF300-24 ( SRW224G4-K9)

-       Product ID Number: SRW224G4-K9

-       24-port 10/100 + 4-Port Gigabit Switch with WebView

-       24 10/100Mbps ;2 10/100/1000Mbps  ports; 2 Combo mini-GBIC ports.

-       Performance: Switching capacity 12.8 Gbps, nonblocking, Forwarding rate 9.52 mpps wire-speed performance.

-       Layer 2: Port grouping up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation, Number of VLANs 256 active VLANs (4096 range), Head-of-line (HOL) blocking HOL blocking prevention.

-       Layer 3: IPv4 routing Wirespeed routing of IPv4 packets, Up to 32 static routes and up to 32 IP interfaces, Classless Inter-Domain Routing (CIDR) support for CIDR.

-       QoS: Priority levels 4 : hardware queues, Scheduling: Priority queuing and weighted round-robin (WRR), Queue assignment based on DSCP and class of service (802.1p/CoS).



Performance

Standards

IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP),IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1350, RFC 1533, RFC 1541, RFC 1542, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC 2131, RFC 2132, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2576, RFC 4330, RFC 1213, RFC 1215, RFC 1286, RFC 1442, RFC 1451, RFC 1493, RFC 1573, RFC 1643, RFC 1757, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 1157, RFC 1493, RFC 1215, RFC 3416

Ports

24x RJ-45 Fast Ethernet

2x RJ-45 Gigabit Ethernet

2x RJ-45 + SFP Gigabit Ethernet Combo Ports

Speed

Switching Capacity in Gigabits per Second (Gbps): 12.8

Capacity in Millions of Packets per Second (mpps) with each packet being 64-bytes: 9.52

MAC Address Table Size

Up to 8000 MAC addresses

Frame Sizes

Jumbo Frames: up to 10 KB supported on 10/100 and Gigabit interfaces

Switching Method

Managed

Layer 2 Switching

Spanning Tree Protocol (STP):

Standard 802.1d Spanning Tree support

Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default

Multiple Spanning Tree instances using 802.1s (MSTP)

Port grouping:

Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

Up to 8 groups

Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation

VLAN:

Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs)

Port-based and 802.1Q tag-based VLANs

MAC-based VLAN

Management VLAN

Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks

Guest VLAN

Unauthenticated VLAN

Voice Lan:

Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS

Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP):

Protocols for automatically propagating and configuring VLANs in a bridged domain

Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2:

Relay of DHCP traffic to DHCP server in different VLAN. Works with DHCP Option 82

Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping:

IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups (source-specific multicasting is also supported)

IGMP Querier

IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router

Head-of-line (HOL) blocking:

HOL blocking prevention

Layer 3

IPv4 Routing:

Wirespeed routing of IPv4 packets

Up to 32 static routes and up to 32 IP interfaces

Classless Inter-Domain Routing (CIDR):

Support for CIDR

DHCP relay at Layer 3:

Relay of DHCP traffic across IP domains

User Datagram Protocol (UDP) relay:

Relay of broadcast information across Layer 3 domains for application discovery or relaying of BootP/DHCP packets

Security

Secure Shell Protocol (SSH):

SSH secures Telnet traffic to and from the switch; SSH v1 and v2 are supported

Secure Sockets Layer (SSL):

SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch

IEEE 802.1X (Authenticator role):

802.1X: RADIUS authentication and accounting, MD5 hash; guest VLAN; unauthenticated VLAN, single/multiple host mode and single/multiple sessions

Supports time-based 802.1X

Dynamic VLAN assignment

Layer 3 isolation:

Allow / disallow routing between IP subnets or directly connected IP networks

Layer 2 isolation Private VLAN Edge (PVE) with community VLAN:

PVE (also known as protected ports) provides Layer 2 isolation between devices in the same VLAN, supports multiple uplinks

Port security:

Locks MAC addresses to ports, and limits the number of learned MAC addresses

RADIUS/TACACS+:

Supports RADIUS and TACACS authentication. Switch functions as a client

Storm control:

Broadcast, multicast, and unknown unicast

DoS prevention:

DoS attack prevention

Congestion avoidance:

A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization

ACLs:

Support for up to 512 rules

Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point (DSCP)/IP precedence, TCP/ UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag

Quality of Service

Priority Levels: 4 hardware queues

Scheduling:

Strict priority and weighted round-robin (WRR)

Queue assignment based on DSCP and class of service (802.1p/CoS)

Class of Service:

Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/type of service (ToS)/DSCP based; Differentiated Services (DiffServ); classification and re-marking ACLs, trusted QoS

Rate Limiting:

Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based

IPv6

IPv6:

IPv6 host mode

IPv6 over Etheret

Dual IPv6/IPv4 stack

IPv6 neighbor and router discovery (ND)

IPv6 stateless address auto-configuration

Path maximum transmission unit (MTU) discovery

Duplicate address detection (DAD)

ICMP version 6

IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing Protocol(ISATAP) support

IPv6 QoS

Prioritize IPv6 packets in hardware

IPv6 ACL

Drop or rate limit IPv6 packets in hardware

Multicast Listener Discovery (MLD) snooping

Deliver IPv6 multicast packets only to the required receivers

IPv6 applications

Web/SSL, Telnet server/SSH, ping, traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), SNMP, RADIUS, syslog, DNS client, protocol-based VLANs

IPv6 RFCs supported

RFC 2463 - ICMP version 6

RFC 3513 - IPv6 address architecture

RFC 4291 - IPv6 addressing architecture

RFC 2460 - IPv6 specification

RFC 2461 - Neighbor discovery for IPv6

RFC 2462 - IPv6 stateless address auto-configuration

RFC 1981 - Path MTU discovery

RFC 4007 - IPv6 scoped address architecture

RFC 3484 - Default address selection mechanism

RFC 4214 - ISATAP tunneling

RFC 4293 - MIB IPv6: Textual conventions and general group

RFC 3595 - Textual conventions for IPv6 flow label

Cable

Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000 BASE-T

Buttons

Reset button

LED

System, Link/Act, Speed

Memory

CPU: 128 MB

Flash: 16 MB

Buffer

Packet Buffer: 4 Mb

Certification

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

General

Form Factor

1U

Power Requirements

100-240V 47-63 Hz, internal, universal

Dimensions (WxHxD)

17.3 x 1.45 x 13.78' / 44 x 4.44 x 25.7 cm

Weight

6.81 lb / 3.09 kg



-       Bảo hành chính hãng: 12 tháng.
