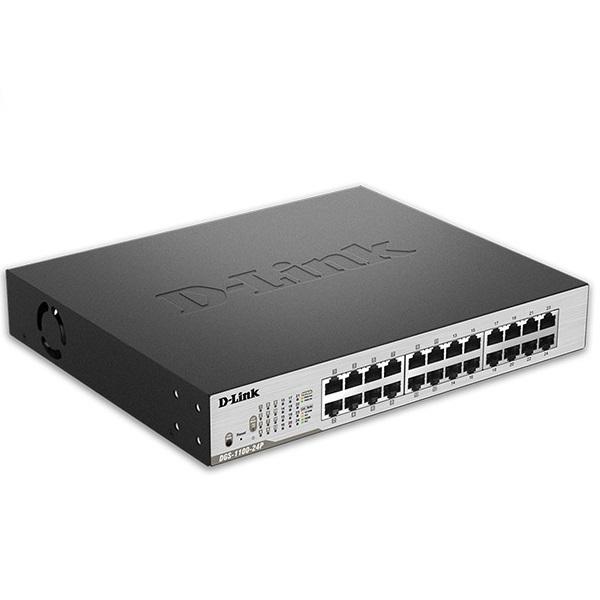

24-Port Gigabit EasySmart Managed Rackmount Switch D-Link DGS-1100-24PA
-24-Port Gigabit EasySmart Managed Rackmount Switch including 12 PoE, Ports Desktop or Rackmount (rackmount ears included)
-The DGS-1100-24PA provide an affordable solution for businesses of all sizes that require simple network management.
-The DGS-1100-24PA switches consist of 24 Gigabit port models with a wide variety of functions and features
-Four models support 802.3af/at Power over Ethernet (PoE), with a range of PoE power budgets from 64W to 370W.
-There is also a PoE-powered model that has the ability to passthrough power to one or two PoE devices downstream.
D-Link Green/Power Saving Performance
-Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), these switches consume less energy by cutting down on power consumption when port utilization is low.
-By deploying EEE devices, users can cut operating costs and reduce necessary cooling equipment, helping small and medium-sized businesses stay within their budgets.
-The DGS DGS-1100-24PA switches also feature D-Link Green Technology that helps save energy automatically.
-The switches monitor the link status of every port and reduce power consumption on the interface when there is no link or no network traffic detected.
Easy to deployment
-The DGS-1100-24PA switches support an intuitive client-based utility (D-Link Network Assistant Utility) and a web-based management interface.
-The client-based utility discovers all D-Link Smart Switches within the same Layer 2 network segment, making initial setup quick and easy.
-This allows extensive switch configuration and basic administration of discovered devices, including password changes and firmware upgrades.
-The web-based management interface provides a user-friendly way for network administrators to manage the switch down to the port level.
-The interface can be accessed from a web browser, allowing the switch to be controlled from any networkconnected PC.
Surveillance VLAN and Bandwidth Control
-The DGS-1100-24PA switches support Surveillance VLAN for IP surveillance deployments.
-This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network.
-This also ensures security, and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance networking hardware.
-Bandwidth Control can reserve bandwidth on a per port basis for important functions that require larger bandwidth or might have high priority.
PoE Support
The DGS-1100-24PA support Power over Ethernet, simplifying deployments with IP cameras, VoIP phones, wireless access points (APs), and other standards-compliant powered devices.
-The DGS-1100-24PA comply with the 802.3af/at PoE+ standards, supporting up to 30W on each PoE port, not to exceed the switches specific power budget.
-Using the management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.
Advanced Features
-The DGS-1100-24PA switches are equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping.
-Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only.
-Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded.
-IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput.
Easy Troubleshooting
-The DGS-1100-24PA switches feature Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. -Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port.
-Cable Diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Technical Specifications
| Hardware Version | Rev. B |
| 10/100/1000 Ports | 24 |
| Port Standard & Functions | IEEE 802.3, 802.3u, 802.3ab compliant |
| IEEE 802.3x Flow Control | |
| IEEE 802.3az EEE compliant | |
| IEEE 802.3af compliant | |
| Half/Full-duplex operation at 10/100 | |
| Full-duplex operation at 1000Mbps | |
| Auto-Negotiation for each port | |
| Auto MDI/MDIX | |
| Switching Capacity | 48Gbps |
| Max. Forwarding Rate | 35.71 Mpps |
| MAC Address Table | 8K Entries |
| Packet Buffer | 512KBytes |
| Flash Memory | 8 Mbytes |
| PoE Standard | 802.3af/at |
| PoE Capable Ports | Ports 1-12 |
| PoE Power Budget | 100 W |
| Power Input | 100 to 240 VAC; 50 to 60 Hz External Universal Pwr Supply |
| Max. Power Consumption | 128.3 W (PoE on) - 21.2 W (PoE off) |
| Standby Power Consumption | 13 W |
| Ventilation | One fan |
| Acoustics | 41.9 dB(A) rev B1 - 27.6 dB(A) rev B2 |
| Heat Dissipation | 437.9 BTU/hr |
| Operating | 32˚F to 104˚F (0˚C to 40˚C) |
| Dimensions (W x D x H) | 280 x 230 x 44 mm |
| Weight | 2.15 kg |
| EMI Certifications | FCC Class A, CE Class A, VCCI Class A, BSMI, CCC |
| Safety | cUL, CE LVD, CB, BSMI, CCC |
| MTBF | 563,292 Hours |
| VLAN | Port-based VLAN |
| 802.1Q Tagged VLAN | |
| Surveillance VLAN | |
| Voice VLAN | |
| Management VLAN | |
| Asymmetric VLAN | |
| VLAN Group | |
| Supports 32 static VLAN groups | |
| Max. 4094 VIDs |
-Bảo hành 24 tháng.
