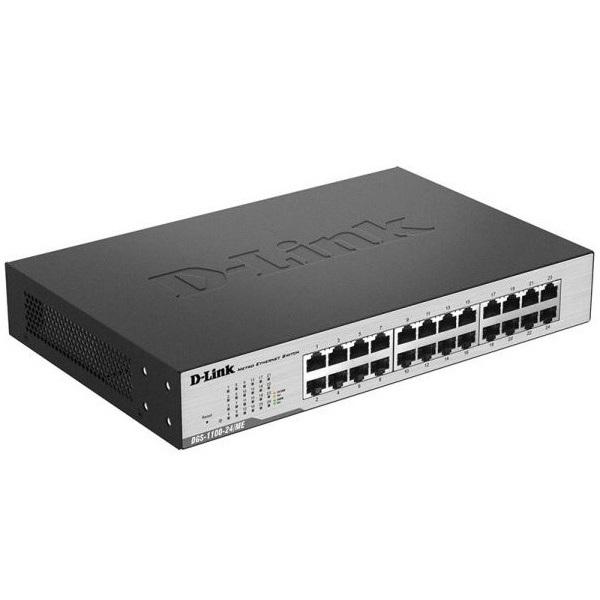

24-Port Gigabit Smart Managed Metro Ethernet Switch D-Link DGS-1100-24/ME
Number of Ports
- 24 10/100/1000 Mbps
Port Functions
- IEEE 802.3 compliant
- IEEE 802.3u compliant
- IEEE 802.3ab compliance
- IEEE802.3af/802.3at (only for DGS-1100-24P/ME, ports 1 through 12)
- Supports half/full-duplex operation (full/half at 10/100 Mbps, full at 1000 Mbps)
- Auto-negotiation
- Auto MDI/MDIX
- IEEE 802.3x Flow Control supports Full-Duplex mode
- IEEE 802.3az compliant
Performance
- Switching Capacity: 48 Gbps
- Maximum Forwarding Rate: 35.71 Mpps
- MAC Address Table Size: 8K Entries
- Packet Buffer: 512 Kbits
- Flash Memory: 8 Mbyte
LEDs
- Power (per device)
- Link/Activity/Speed (per port)
Power Consumption
- Maximum Power Consumption: 13.94W
- Standby Mode: 10.37W
Software Features
VLAN
- Port-based VLAN
- 802.1Q Tagged VLAN
- Auto Surveillance VLAN
- Voice VLAN
- Asymmetric VLAN
- VLAN Group
- Supports 128 static VLAN groups
- Max. 4094 VIDs
- Multicast VLAN
L2 Features
- Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
- Jumbo Frames up to 9216 Bytes
- IGMP Snooping
- IGMP v1/v2/v3 awareness Snooping
- Supports 64 Groups
- IGMP Snooping Querier
- MLD Snooping
- MLD v1/v2 awareness snooping
- Supports 64 groups
- MLD snooping querier
- 802.3ad Link Aggregation:
- Loopback Detection
- Cable Diagnostics
- LLDP
- Port Mirroring
- One-to-One
- Many-to-One
- Statistics
- Tx Ok
- Tx Error
- Rx Ok
- Rx Error
- Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
Quality of Service (QoS)
- 802.1p Quality of Service
- 4 queues per port
- Queue Handling
- Strict
- Weighted Round Robin (WRR)
- Port-based Bandwidth Control (Rate Limiting)
- Ingress: 8Kbps, Egress: 64Kbps
Security
- D-Link Safeguard
- Traffic Segmentation
- DoS Attack Prevention
- Broadcast/Multicast/Unknown Unicast Storm Control
Management
- Command line interface (via Telnet)
- D-Link Network Assistant Utility
Green Technology
- Power Saving by
- Link Status
- LED Shut-Off
- Port Shut-Off
- System Hibernation
- Compliant with IEEE 802.3az Energy Efficient Ethernet
Physical
- Size: 11-inch Desktop/Rackmount Size, 1U Height
- Power Input: 100 to 240 VAC, 50 to 60 Hz Internal Power Supply
- Weight: 1.63 kg
- Dimensions: 280x 180x 44 mm (11.02 x 7.08 x 1.73 inches)
- Ventilation: Fanless
- Operating Temperature: -5 to 50 °C (23 to 122 °F)
- Storage Temperature: -40 to 70 °C (-40 to 158 °F)
- Operating Humidity: 0% to 95% non-condensing
- Storage Humidity: 0% to 95% non-condensing
- Bảo hành: 36 tháng.
