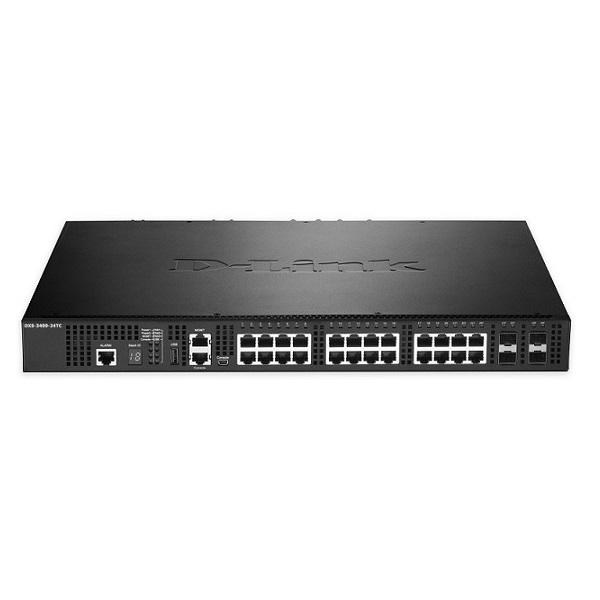

24-Port Layer 3 Stackable 10 port Gigabit Managed Switch D-Link DXS-3400-24TC
-20 x 10GBASE-T ports.
-4 x 10GBASE-T/SFP+ Combo ports.
-/ESI: Standard Image.
-Physical stacking with up to 4 devices per stack.
-Layer 2+ static routing / RIPv1/v2/ng.
-Optional Layer 3 dynamic routing / OSPF.
-Data Center Bridging (DCB) features.
-Hot-swappable power supplies and fan modules.
High Availability and Flexibility
-The DXS-3400-24TC Series switches feature a modular fan and power supply design for a high availability architecture.
-The hot-swappable design means that fans and power supplies can be replaced without affecting switch operation.
-Physical and virtual switch stacking allow the switches to be managed from a single IP address and provide redundancy for connected devices.
-The Switch Resource Management (SRM) feature allows the hardware table size to be changed, so that switch functions can be optimized based on the use of the switch.
Flexible Management With Multiple Software Images
-The DXS-3400-24TC Series is designed for use with two different software images: the Standard Image (SI) and the Enhanced Image (EI).
-The Standard Image provides core SMB and SME functionality. The Enhanced Image supports all Standard Image features, in addition to advanced L3 routing for enterprise integration.
-With multiple software images, only the required features need to be purchased, providing a flexible approach to software licensing.
Lossless Ethernet
-Data Center Bridging (DCB) is an essential set of enhancements to Ethernet for networking in data center environments.
-The DXS-3400-24TC Series switches support several core components of Data Center Bridging (DCB) such as IEEE 802.1Qbb Priority-based Flow Control, IEEE 802.1Qaz Enhanced Transmission Selection, and IEEE 802.1Qau Congestion Notification.
Technical Specifications
| Interfaces | 20 x 10GBASE-T ports. |
| 4 x 10GBASE-T/SFP+ Combo ports | |
| Console Port | RJ45 and Mini USB console ports for out-of-band CLI management |
| Management Port | 10/100/1000BASE-T RJ45 Ethernet for out-of-band IP management |
| Alarm Port | RJ45 |
| USB Port | USB 2.0 Type A |
| Switch Capacity | 480 Gbps |
| Max. Forwarding Rate | 357.12 Mpps |
| Packet Buffer Memory | 4 Mbytes |
| MAC Address Table | Up to 48K entries |
| Heat Dissipation | 557.94 BTU/hr |
| MTBF | 134,447 hours |
| Physical stacking | Up to 80G stacking bandwidth |
| Up to 4 switches in a stack | |
| Ring/chain topology support | |
| Virtual Stacking/clustering of up to 32 units | Supports D-Link single IP Management |
| L2 Features | MAC Address Table: Up to 48K entries |
| Flow Control | 802.3x Flow Control when using Full Duplex |
| Back Pressure when using Half Duplex | |
| HOL Blocking Prevention | |
| IGMP Snooping | IGMP v1/v2/v3 Snooping |
| Supports 512 IGMP groups | |
| Supports 64 static IGMP groups | |
| Per VLAN IGMP Snooping | |
| IGMP Snooping Querier | |
| Host-based IGMP Snooping Fast Leave | |
| L3 Features | ARP: 512 Static ARP, Supports Gratuitous ARP, ARP Proxy |
| IP Interface: Supports 256 interfaces | |
| -Loopback Interface | |
| -IPv6 Neighbor Discovery (ND) | |
| -UDP Helper | |
| -IPv6 Tunneling: Static, ISATAP, GRE, 6to4, IGMP Proxy Reporting, VRRP v2/v3 | |
| Power Input | 100 to 240 VAC, 50/60 Hz, 2A |
| Max Power Consumption | 159.8 W |
| Dimensions | 441 x 380 x 44 mm |
| Weight | 7.6 kg |
-Bảo hành: 36 tháng.
