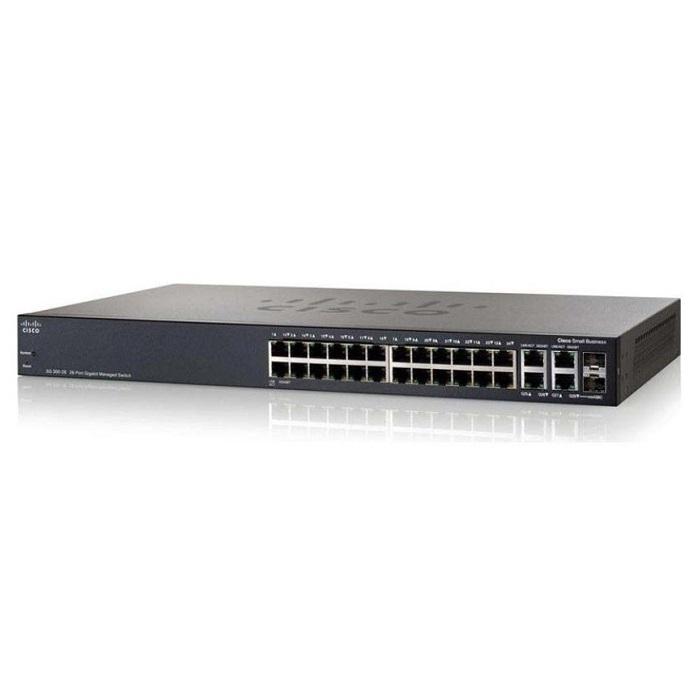

28-Port Gigabit PoE Managed Cisco SRW2024P-K9-EU
- SRW2024P-K9-EU support 26 x 10/100/1000 + 2 x combo Gigabit SFP.
- Gigabit Switching with Fiber Expansion and Browser Configurability.
- Performance: Switching capacity 56.0 Gbps, nonblocking, Forwarding rate 41.67 mpps wire-speed performance.
- Layer 2: Port grouping up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation, Number of VLANs 256 active VLANs (4096 range), Head-of-line (HOL) blocking HOL blocking prevention.
- Layer 3: IPv4 routing Wirespeed routing of IPv4 packets, Up to 32 static routes and up to 32 IP interfaces, Classless Inter-Domain Routing (CIDR) support for CIDR.
- QoS: Priority levels 4 hardware queues, Scheduling Priority queuing and weighted round-robin (WRR), Queue assignment based on DSCP and class of service (802.1p/CoS).
Specifications
| Jumbo Frame Support | 10 KB |
| Routing Protocol | Static IPv4 routing |
| Minimum Storage Temperature | -4 F |
| Depth | 10.1 inches |
| MTBF | 187,335 hour(s) |
| Cables Included | 1x Serial Cable |
| Capacity | 4K Active VLANs |
| Height | 1.7inches |
| Maximum Operating Temperature | 104 F |
| MAC Address Table Size | 16k entries |
| Width | 17.3 inches |
| Enclosure Type | Desktop, rack-mountable - 1U |
| Maxiumum Storage Temperature | 158 F |
| Ports | 26 x 10/100/1000 + 2 x combo Gigabit SFP |
| Device Type | Switch - 28 ports - L3 - managed |
| Humidity Operating Range | 10-90% (non-condensing) |
| Minimum Operating Temperature | 32 F |
| Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE 2 x 10BaseT/100Base-TX/1000Base-T - RJ-45 1 x console - 9 pin D-Sub (DB-9) - management 2 x SFP (mini-GBIC) |
| Humidity Storage Range | 10-90% (non-condensing) |
| Flash Memory | 16 MB |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Performance | Switching capacity: 56 Gbps Forwarding performance (64-byte packet size) : 41.67 Mpps |
| Power Device | Power supply - internal |
| Power Over Ethernet (PoE) | PoE |
| Status Indicators | Link activity, port transmission speed, system |
| Ram | 128 MB |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
- Bảo hành: 12 tháng.
