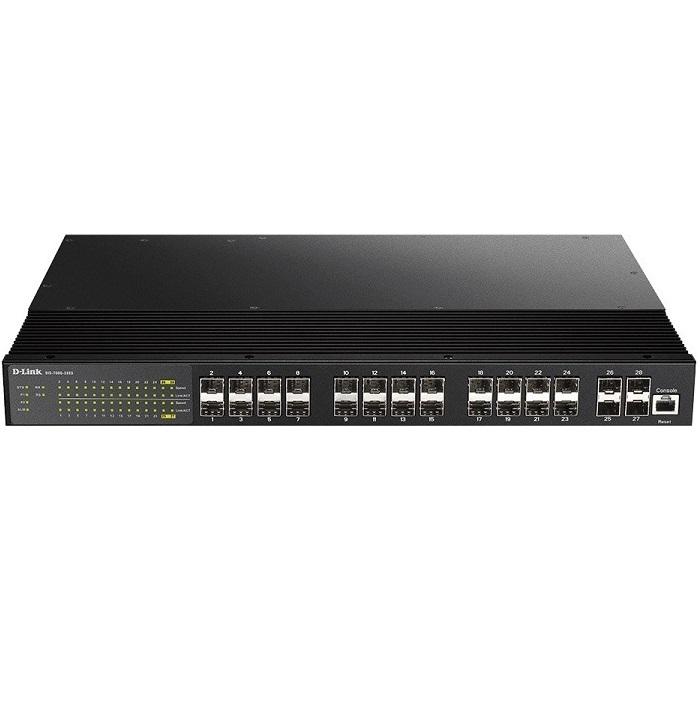

28-port Gigabit SFP Layer 2+ Managed Industrial Switch D-Link DIS-700G-28XS
- Multi-layer ACL support
- High redundancy features to provide industrial-grade reliability:
o Dual power inputs
o Ring Protection with <20ms
- Resistant to temperatures between -40 and 75°C
- Shock and vibration resistance further boost resilience to outside conditions
- IP30-rated ingress protection provides defense against small objects entering the switch
- Reverse Polarity Protection prevents damage in case of accidental incorrect wiring setup
- Quality of Service (QoS) prioritizes network traffic, minimizing the impact of busy bandwidth
- IEEE 802.3az Energy Efficient Ethernet is not just good for the planet, but for your budget as well
- Fanless design for silent operation
- Rack mountable
Specifications
| Model | DIS-700G-28XS |
| Ethernet | |
| Ethernet Interfaces | 24 x SFP ports 4 x 10G SFP+ slots (1G SFP backwards compatible) |
| Operating Mode | Store and forward, L2 wire-speed/non-blocking switching engine |
| MAC Address | 8K |
| Jumbo Frames | 9K Bytes |
| SFP/SFP+ (pluggable) Ports | |
| Port Types Supported | Gigabit fibre multimode, fibre single mode, fibre long-haul single mode 100/1000BaseF (SX/LX/LH) |
| Fibre Port Connector | LC typically for fibre (depends on module) |
| 10G SFP+ | 10G SFP+ slots (1G SFP backwards compatible) |
| Other Interfaces | |
| Console Port | RJ-45 port (RJ45-to-RS232 DB9 connector cable included) |
| Alarm Relay Output | Relay output with current carrying capacity of 2A @ 24 VDC |
| USB Port | 1 x USB 2.0 Type A port |
| Network Redundancy | |
| Fast Failover Protection Rings | Link loss recovery < 20ms Single & Multiple rings supported |
| Spanning Tree Protocol | IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP BPDU forwarding and filtering |
| IEEE 802.3ad Port Trunk with LACP | Static trunk or Dynamic via LACP (Link Aggregation Control Protocol) |
| Bridge, Virtual Local Area Networks (VLANs) & Protocols | |
| Flow Control | IEEE 802.3x (Full Duplex) and Back-Pressure (Half Duplex) |
| Max VLANs | 2048 |
| VLAN Types | Port-based VLANs, IEEE 802.1Q tag-based VLANs, IEEE 802.1v protocol-based VLANs, IEEE 802.1ad Double Tagging (Q in Q), Private VLAN |
| VLAN Operations | Attach/Remove/Replacement VLAN tag |
| MVR (Multicast VLAN Registration) | Yes |
| Multicast Protocols | IGMP v1, v2 and v3 with up to 512 multicast groups IGMP snooping and querying Immediate leave and leave proxy |
| Traffic management engine & QoS | |
| Policy-Based Access Control Engine | Policy/profile-based Access Control List (ACL) Multi-layer ACL support Flexible combination of well-known fixed Layer 2/3/4 fields: VLAN ID, Source/Destination MAC address, EtherType Source/Destination IP address, IP protocol number UDP or TCP, Source/Destination port number of TCP/UDP DSCP or ToS value Actions per rule: Deny, Allow, Queue mapping, rate limit, mirror, CoS remark Max number of profiles per switch: 20 Max number of rules per profile: 32 |
| Number of Queues per Port | 8 |
| Scheduling Schemes | SPQ, WRR, SPQ + WRR |
| Traffic Shaper | Hierarchical per port and per queue shaping & scheduling with bandwidth management |
| Traffic Policer | Ingress rate limit in 1K bps granularity TrTCM (Two Rate Three Color Marker) policer engine |
| Security | |
| Port Security | IP and MAC-based Access control; Policy-based Access control IEEE 802.1X authentication Network Access Control RADIUS Client for IEEE 802.1X |
| Storm Control | Multicast/Broadcast/Flooding Storm Control on per port and per VLAN basis |
| Management | |
| User Management Interfaces | Industrial-like CLI (command line interface) WEB-based Management SNMP v1, v2c, v3 Telnet (5 sessions) |
| Management Security | HTTPs, SSH |
| Upgrade & Restore | TFTP/FTP for Configuration Import/Export, TFTP/FTP for Firmware Upgrade |
| Diagnostic | Syslog Policy-based stream mirroring Ethernet Copper connection diagnostic tool |
| NTP/SNTP | Yes |
| General | |
| Input Voltage Range | Dual 20-57 VDC |
| Power Consumption | 35 W |
| Power Status | Indication of power input status |
| Ethernet Port Indicators | Link & Speed |
| Operating Temperature Range | -40 to +75°C |
| Humidity (Non-Condensing) | 5 to 95% RH |
| Ingress Protection | IP30 |
| Dimensions | 440 x 44 x 318.5 mm |
| Weight | 4.5kg |
- Bảo hành: 36 tháng.
