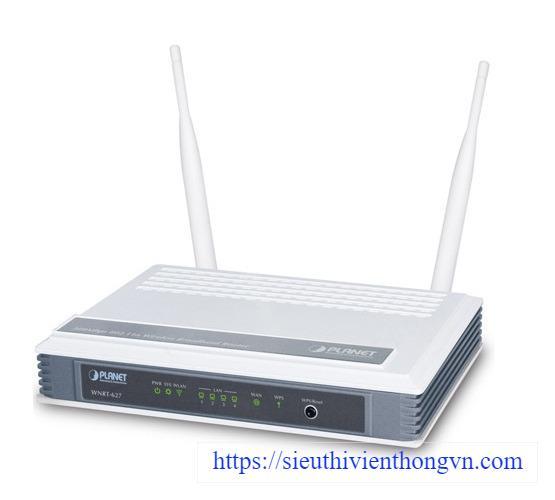

300Mbps 802.11n Wireless Broadband Router PLANET WNRT-627

300Mbps 802.11n Wireless Broadband Router PLANET WNRT-627

  • MS 000002867
  • PLANET
Giá : Liên hệ

300Mbps 802.11n Wireless Broadband Router PLANET WNRT-627

-       1 cổng 10/100Mbps (WAN) + 4 cổng 10/100Mbps (LAN).

-       Tiêu chuẩn IEEE 802.11n (2T2R).

-       Tốc độ truyền dữ liệu: 300Mbps.

Industrial Client and Industrial Compliant Wireless & Wired LAN

-       Compliant with IEEE 802.11n wireless technology capable of up to 300Mbps data rate.

-       Backward compatible with 802.11b/g standard.

-       Two 5dBi Fixed Antenna.

-       Equipped with four LAN ports (10/100Mbps) and one WAN port (10/100Mbps), Auto MDI/MDI-X supported.

Fixed-Network Broadband Router

-       Internet types: Dynamic IP/ Static IP / PPPoE / Telstra Big Pond / L2TP / PPTP.

-       Supports Static Routing, WDS, UPnP, Dynamic DNS.

Secure Network Connection

-       Supports Wi-Fi Protected Setup (WPS).

-       Advanced security: 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK with TKIP/AES.

-       Encryption, and 802.1x Authentication.

-       Supports NAT firewall features, with SPI function to protect against DoS attacks.

-       IP / Protocol-Based access control and MAC Filtering.

Advanced Networking function for Specific Application

-       Supports multiple sessions IPSec, L2TP and PPTP VPN pass-through

-       Supports Virtual Server, ALG, DMZ and UPnP for various networking applications.

-       Supports DHCP Server.

Easy Installation & Managemen

-       Web-Based UI for quick setup and easy configuration.

-       Remote Management allows configuration from a remote site.

-       System status monitoring includes DHCP System Log.

Đặc tính kỹ thuật

Hardware Specification

Interface

WAN Port: 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port

LAN Port: 4 x 10/100Mbps Auto MDI/MDI-X RJ45 port

Antenna

Gain: 2 x Fixed 5dBi antenna

Orientation: Omni-directional

Power Button

Power On/Off button at rear panel

WPS / Reset Button

WPS / Reset button at front panel

Push the button at least 5 seconds to reset to factory default setting

WPS / Reset button at front panel

PWR, SYS, WLAN, LAN x 4, WAN, WPS with green light

Wireless interface Specification

Standard

Compliance with IEEE 802.11b/g/n

Frequency Band

2.4~2.4835GHz

Extend Frequency

DSSS

Modulation Type

DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)

Transmission Distance

Indoor up to 100m

Outdoor up to 300m (It is limited to the environment)

Channel

America / FCC: 2.414~2.462GHz (11 Channels)

Europe / ETSI: 2.412~2.472GHz (13 Channels)

Japan / TELEC: 2.412~2.484GHz (14 Channels)

RF Power

≦20 dBm (EIRP)

Receive Sensitivity

270M: -68dBm@10% PER

130M: -68dBm@10% PER

108M: -68dBm@10% PER

54M: -68dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER

1M: -90dBm@8% PER

Wireless Management Features

Wireless Operation Mode

AP, WDS (AP+Bridge), WISP Client Router

Encryption Security

WEP (64/128/152-bit) encryption security

WPA-PSK / WPA2-PSK (TKIP/AES)

WPA / WPA2 (TKIP/AES)

WPA / WPA2 enterprise mode (802.1x authentication)

Wireless Security

Provides wireless LAN ACL (Access Control List) filtering

Wireless MAC address filtering

Supports WPS (Wi-Fi Protected Setup )

Enable / Disable SSID Broadcast

Wireless Advanced Features

Supports 802.11e WMM (Wi-Fi Multimedia)

Supports Wireless Roaming (Mobility Feature)

Provides Wireless Statistics

Router Features

Internet Connection Type

Shares data and Internet access for users by supporting the following protocols:

PPPoE, Dynamic IP, Static IP, Telstra Big Pond, PPTP / Russia PPTP, L2TP / Russia L2TP

Firewall

NAT firewall with SPI (Stateful Packet Inspection)

NAT with ALG (Application Layer Gateway)

Built-in NAT server supporting Virtual Server, and DMZ

Built-in firewall with IP address filtering, Domain Name filtering, and

MAC address filtering

Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter, DoS protection

Routing Protocol

Static Routing

VPN Pass-through

PPTP, L2TP, IPSec

LAN

Built-in DHCP server supporting static IP address distributing

Supports UPnP, Dynamic DNS

Supports Flow Statistics

IP & MAC Binding

IP / Protocol-Based Bandwidth Control

Session Number: Max. 5210

OS Compatibility

Windows 7 (32-bit/64-bit)

Windows Vista (32-bit/64-bit)

Windows XP

Mac OSX 10.4 and higher

Standards Conformance

IEEE Standards

IEEE 802.11n (2T2R, up to 300Mbps)

IEEE 802.11g

IEEE 802.11b

IEEE 802.11i

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-TX

IEEE 802.3x Flow Control

Others Protocols and Standards

CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP

Power Requirement

9VDC, 0.6A

Material

Plastic

Dimension

174 x 110 x 23 mm

Weight

280g

-       Sản suất tại Taiwan.

-       Bảo hành: 12 tháng.
