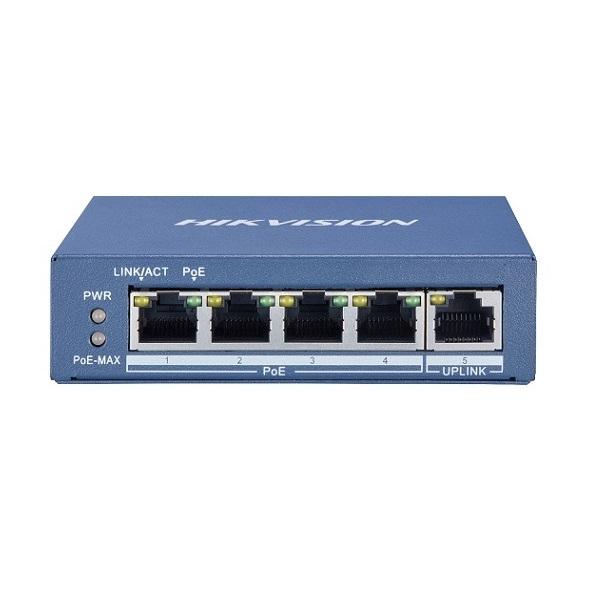

4-Port Gigabit Unmanaged PoE Switch HIKVISION DS-3E0505P-E/M
- HIKVISION DS-3E0505P-E/M switch is a layer 2 PoE network switch, providing 4 × Gigabit PoE ports and 1 × Gigabit RJ45 port. On top of high-performance access, the switch provides advanced PoE power technology to guarantee the stable network upload of the adaptive data.
- 4 × Gigabit PoE ports, 1 × Gigabit RJ45 port.
- IEEE 802.3at/af standard.
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
- 6 KV surge protection for PoE ports.
- PoE power management.
- Gigabit network access.
- Wire-speed forwarding and non-blocking design.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
Specification
| Model | DS-3E0505P-E/M |
| Network parameters | |
| Port number | 4 × Gigabit PoE ports, 1 × Gigabit RJ45 port |
| Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z |
| Forwarding mode | Store-and-forward switching |
| MAC address table | 2 K |
| Switching capacity | 10 Gbps |
| Packet forwarding rate | 7.44 Mpps |
| Internal cache | 1 Mbits |
| PoE power supply | |
| PoE standard | IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Ethernet cable 1/2/3/6 provide power supply. |
| PoE port | Ports 1 to 4 |
| Max. port power | 30 W |
| PoE power budget | 35 W |
| Max. power consumption | 38 W |
| General | |
| Shell | Metal material, no fan |
| Net weight | 0.265 kg (0.58 lb) |
| Gross weight | 0.759 kg (1.67 lb) |
| Dimension (L × H × D) | 105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”) |
| Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Power supply | 48 VDC, 0.8 A |
| Power consumption in idle | 3 W |
- Bảo hành: 24 tháng.
