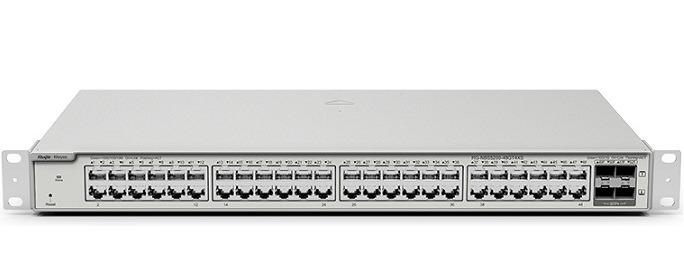

48-port Gigabit Managed Switch RUIJIE RG-NBS5200-48GT4XS
- 48-Port 10G L2+ Managed Switch
- 48 Gigabit RJ45 Ports
- 4 *10G SFP+ Slots
- 19-inch Rack-mountable Steel Case
- Static Routing
Specifications
| Model | RG-NBS5200-48GT4XS |
| Ports | 48 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports, fixed single AC power supply |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 144Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 16K |
| Number of VLANs | 4094 |
| Layer 3 aggregation ports | 16 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| IP routing | Support static routing |
| ACL | IP standard ACL MAC extended ACL IP extended ACL Port ACL for Layer 2 ports (physical port / AP) |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection Hardware CPP |
| Management | Web management, Ruijie Cloud platform or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Dimensions | 440×267.5×43.6mm |
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃ Storage temperature: -40 ℃ ~ 70 ℃ |
| Humidity | Operating humidity: 10% ~ 90% RH Storage humidity: 5% ~ 90% RH |
- Bảo hành: 3 năm.
