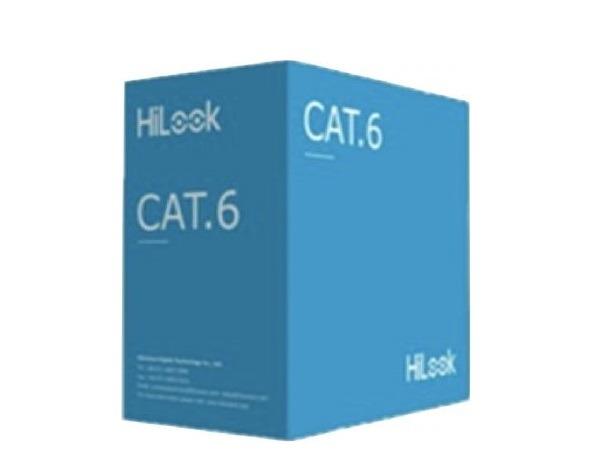

4-Pair CAT6 U/UTP Cable HILOOK NC-6AU-W
- CAT6, 0.585mm, 305m, CCA, khoảng cách truyền dẫn lên tới 85m, chứng chỉ CPR, trắng.
- U/UTP 4-Pairs CCA cable-category 6-PVC Sheat.
- Tiêu chuẩn đóng gói: 305 mét/thùng.
- Khoảng cách truyền dẫn lên tới 85m.
- Chứng chỉ: CPR.
- Màu sắc: Trắng.
Thông số kỹ thuật
| Model | NC-6AU-W |
| Category | CAT. 6 CCA U/UTP 4x2x23AWG/1 PVC |
| Conductor | Materia: CCA (Copper content: 27%) Nom.O.D.(mm): 0.585 (±0.01) |
| Insulation | Material: Solid HDPE Diameter: 1.05±0.05mm |
| Sheath | Thickness: 0.50±0.05 mm External O.D. : 6.0±0.30 mm Surface: Clean, Frap, Satiation Material: FR-PVC(complies RoHS) Color: White RAL9003 |
| Surface Printing | Letter height: 2.5±0.2mm Color: Black Print error & Space: ≤±0.5%，1m |
| Core Color | 1 Blue & White/ Blue 2 Orange & White/ Orange 3 Green & White/ Gree 4 Brown & White/ Brown |
| Packing | Carton |
| Carton dimension | 41x41x24cm |
| Packing length | (305±1.5)m |
| Sheath Physical Properties | Before Aging Tensile Strength (Mpa) ≥13.5 Elongation(%) ≥150 Aging Period(℃×hrs): 100℃×24h×7d After Aging Tensile Strength(Mpa) ≥12.5, variance ratio:±25% Elongation(%) ≥125, variance ratio:±20% Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks |
| Electrical Characteristics (20℃) | 1.0-100.0MHz Impedance(Ω) 100±15 100 - 250MHz Impedance(Ω) 100±25 1.0-100.0MHz Delay Shew (ns/100m) ≤45 DC ResistanceΩ/100m) max 12 DC Conductor Resistance Unbalance(%) max 2 |
| Ambient temperature | -20℃ - 70℃ |
