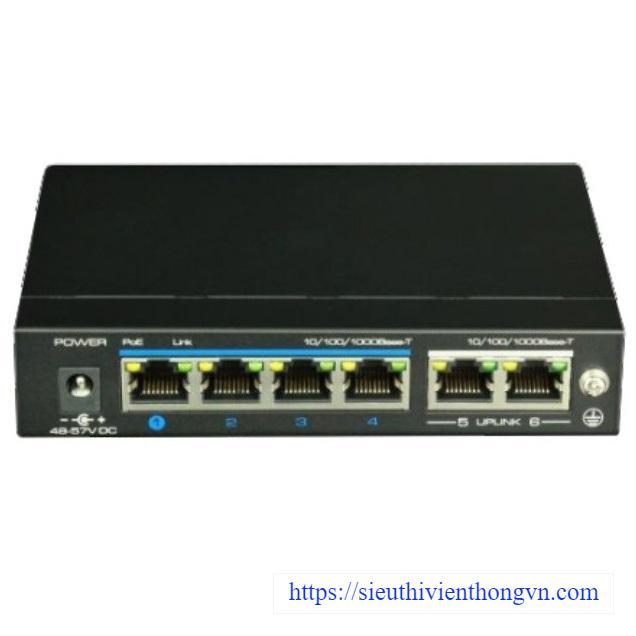

4-Port 10/100/1000Mbps PoE Switch IONNET IGE-604 (60)
- Main Ports: 4x downlink gigabit PoE Ethernet ports, 2x uplink gigabit Ethernet ports.
- Unique Feature: One – key CCTV mode,which can restrain network storm, realize VLAN function and 1~4 downlink port only able to communicate with uplink ports.
- Power Input: DC48V~57V.
- Standard: IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3af, IEEE802.3at.
- Protection: Superior lightning protection (6KV), ESD protection and anti interference ability.
- Structure: stable and delicate, easy to install.
- Operation: plug and play, no any settings needed.
Specifications
| Model | IGE-604 (60) |
| Downstream Ports | 4* 10/100/1000Base-T (PoE) |
| Uplink Ports | 2*10/100/1000Base-T |
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3X |
| Switch Capacity | 12 Gbps |
| Throughput | 8.93Mpps |
| Switch Processing Scheme | Store and Forward |
| Memory Buffer | 1M |
| MAC Table | 2K |
| PoE Standard | 802.3af/at (PSE) |
| PsE Type | End- span |
| Power Pin Assignment | 1/2(+), 3/6(–) |
| PoE Power Output | 54V DC, 30 watts max |
| PoE Budge | 60 watts max |
| Lightning protection | 6KV Execute : IEC61000-4-5 |
| ESD | 6KV Contact discharge 8KV Air discharge Execute: IEC61000-4-2 |
| Power Supply | DC 48V~57V |
| Power Dissipation | <5W |
| Working temperature | -10°C~45°C |
| Storage temperature | -40°C ~85°C |
| Humidity (Non condensing) | 5%-95% |
| Dimensions (LxWxH) | 135mm×86mm×27mm |
| Weight | 343g |
- Bảo hành: 12 tháng.
