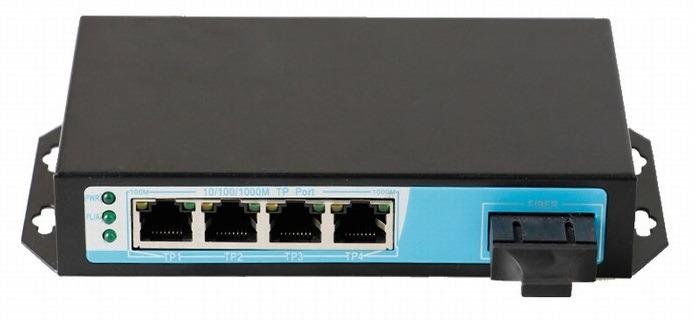

4-Port 10/100/1000Mbps PoE Switch NETONE NO-AFG-41F (65Watt)
- Bao gồm: 1 port Uplink cáp quang 2 sợi loại Single-mode, đầu nối SC, 4 port Gigabit PoE, công suất mỗi port 15.4W, tổng công suất 65W.
- 4 Port Gigabit POE Switch,4 Port Gigabit PoE Ports and 1 Dual Fiber Uplink
- Bandwidth:10Gbps
- PoE Line:End-Span(12+,36-)
- IEEE802.3af(15.4W)
- Power: 48V1.25A
Specifications
Product Name | 4-Port AF PoE Switch with 4 PoE Ports and 1 Uplink Dual Fiber Uplink |
Model | NO-AFG-41F |
Connector Type | 4x 10/100/1000M copper cable RJ45 ports(4 PoE ports+1 Uplink) |
Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) |
Bandwidth | 10Gbps (non-blocking) |
Address Database Size | 8K |
MTBF | 190,000 hours (about 21 years) |
Forwarding Mode | Store-And-Forward |
Network Protocols | IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af |
LED Display | System: power supply; Every Port: connecting, PoE working status |
Power Supply | Power input: AC100-240V 50/60Hz; (every country use a custom power plug) |
PoE Ports | Port 1-4 support POE |
PoE Port Power | 15.4W for each POE port |
PoE Standard | IEEE 802.3af |
PoE Feature | All ports support MDI/MDIX |
Working Environment | Operating Temperature: -30 ° ~ 55 ° C; Storage Temperature: -40 ° ~ 85 ° C; Operating Humidity: 5% ~ 95%, non-condensing |
Certification | CE Mark,FCC,RoHS |
Transmission Distance | Data transmission distance: 100m |
Product Size | 15.5*8*3cm, 0.38kg |
- Sản xuất tại Taiwan.
- Bảo hành: 12 tháng.
