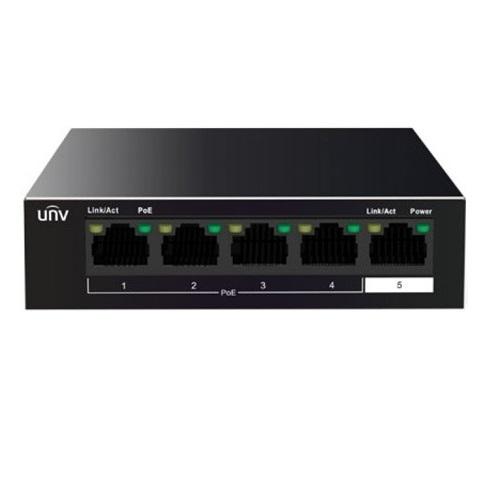

4-Port 10/100Mbps Ethernet PoE Switch UNV NSW2010-5T-POE-IN
- 1 x 10/100Mbps cổng Ethernet.
- 4 x 10/100Mbps cổng hỗ trợ PoE.
- PoE tuân thủ chuẩn IEEE802.3af/at, tối đa 30W cho một cổng.
- Khoảng cách truyền lên tới 250m trên chế độ EXTEND.
- Dễ sử dụng, không cần cấu hình.
- Chất lượng cao với tất cả vỏ kim loại.
- Chống sét 6KV.
Đặc tính kỹ thuật
| Model | NSW2010-5T-POE-IN |
| Port | 5 ports × 10 / 100Base-TX autosensing (4 x 10/100Mbps ports support PoE) |
| Characteristic | Transmission speed 10/100 Mbit/s Half-duplex, full-duplex and auto negotiation MDI / MDIX automatically |
| Standard | IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3af; IEEE 802.3at |
| MAC | 1K |
| Packet forwarding speed | 0.74Mpps |
| Switching capacity | 1Gbps |
| EXTEND mode | Standard: the ports are not generally managed and all switch ports can communicate with each other. Extend mode: If the extended mode is enabled, the transmission distance of both source and data will expand up to 250m (10Mb / s), this function can replace the extension and parts of the Fiber. . It will widen the distance of the whole system and save the cost of the project. |
| LED display | Link / Act (yellow steady): link is normal Link / Act (yellow flashing): data is being forwarded Link / Act (off): no link PoE (steady green): port is supplying power to properly powered device PoE (off): port is not connected to any powered device or does not provide power Power (steady green): AC input is normal Source (off): AC input is abnormal |
| PoE | Ports 1 to 4 support standard IEEE802.3at/af (maximum power for each port is 30W) PoE energy type is the last beat (pair 12+, 36- and 45+, 78-line) Maximum PoE power: 57.8W |
| Wattage | ≤ 63.7 W |
| DC voltage | 51 V, 1.25A |
| Work environment | Temperature 0 ° C-40 ° C (32 ° F-104 ° F) Humidity 10% -90% without condensation |
| Humidity | Temperature -40 ° C-70 ° C (-40 ° F-158 ° F) Humidity 5% -90% without condensation |
| Dimensions (W×D×H) | 100 x 100 x 26 mm |
| Certification | FCC, CE, RoHS |
- Bảo hành: 02 năm.
