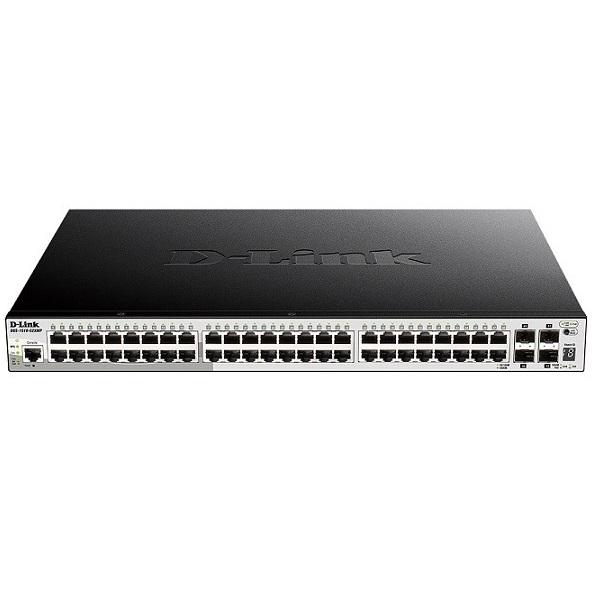

52-port Gigabit Smart Managed PoE Switch with 10G Uplinks D-Link DGS-1510-52XMP
-48 x 10/100/1000BASE-T PoE ports + 4 x 10G SFP+ ports.
-Layer 2 management and security with Layer 3 capabilities
Static Routing and MSTP
-370 W PoE budget (without RPS); 740 W PoE Budget (with RPS, only supports DPS-700).
Industry Standard CLI with 10G SFP+ stacking
-The D-Link DGS-1510 Series is the latest generation of Smart Managed switches with 10G SFP+ fibre ports for physical stacking or uplinks. The combination of high bandwidth connections, an Industry Standard CLI, and PoE options make the DGS-1510 Series ideal for Small-Medium Enterprise environments.
-Fully‑Featured with Layer 3 Traffic Management
The DGS-1510 family has advanced network management options, accessible via Industry Standard CLI, Serial Port Console or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, multiple firmware images,and multiple configuration files.
10G SFP+ Stacking
-Create a physical stack of up to 6 units in a fault‑tolerant ring or linear topology using Direct Attach Cables or any compatible SFP+ transceivers for a total of 288 Gigabit ports. The remaining uplink ports can be used for other functions, offering 10G connectivity to core networks and servers.
-With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1510 family is a versatile solution for enterprise network environments.
Max PoE with budgets up to 740W
-Choose between 193W and 370W power budget options. Or utilise a total of 740W when adding a redundant power supply to the DGS-1510-52XMP.
Free Network Design and Management Software
-D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration.
-The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.
Smart Energy‑Saving Design
-D-Link Green technology enables the DGS-1510 series to save power without sacrificing performance.
-The entire series of switches feature a smart fan that adjusts fan-speed and only powers on above a certain temperature. With advanced silicon technology, the DGS-1510 series saves up to 73% of energy compared to normal switches.
Technical Specifications
| 1000Base-T PoE Interface | 48 |
| 10G SFP+ Interface | 4 |
| Auto MDI/MDIX | Yes |
| Console Port | Yes |
| 10/100/1000BASE-T PoE ports | 48 |
| 10G SFP+ ports | 4 |
| Switch Capacity | 176 Gbps |
| Max. Packet Forwarding Rate | 130.95 Mpps |
| Dimension | 440mm x 308.5mm x 44mm |
| Weight | 5.41 Kg |
| Operation Temperature | -5 -50°C |
| Storage Temperature | -20-70°C |
| Operation Humidity | 0% ~ 95% RH |
| Storage Humidity | 0% ~ 95% RH |
| Maximum Power Consumption | 486.9 W (PoE on) 58.8 W (PoE off) |
| Standby Power Consumption | 39.8W/100V, 40.1W/240V |
| Maximum Heat Dissipation | 1,660.33 BTU/hr |
| Acoustic | 55.4 dB(A) |
| MTBF | 303,027 hours |
| Store & Forwarding Forwading | Yes |
| Power Input | 100 - 240 VAC |
| CPU Speed | 400MHz |
| DRAM Size | 256MB |
| Flash Memory Size | 32MB |
| Packet Buffer Size | 3MB |
| FAN | 4 DC Fans |
| Comply with RoHS 6 | Yes |
| Energy Efficiency Ethernet (EEE) | Yes |
| Time-based PoE | Yes |
| Power Saving By System Hibernation | Yes |
| PoE Budget | 370 W (without RPS); Max. 740 W (with RPS, only supports DPS-700) |
| Maximum PoE Budget | 370W (w/o RPS); 740W (w/ RPS) |
| Physical Stacking Bandwidth | 40 G |
| Units Per Physical Stack | 6 |
| D-Link Single IP Management (SIM) | Yes |
| Units Per SIM Stack | 32 |
| MAC Address Table Size | 16384 |
| Link Aggregation Group Per Device | 32 |
| Max Port Per Link Aggregation Group | 8 |
| Jumbo Frame | 9216 |
| VLAN Groups | 4094 |
| Auto Surveillance VLAN | Yes, 2.1 |
| Max Number of IP Interface | 16 |
| ARP | Yes |
| ARP Entries | 512 |
| Number of Queue | 8 |
| Privilege Level for Management Access | 5 |
-Bảo hành: 36 tháng.
