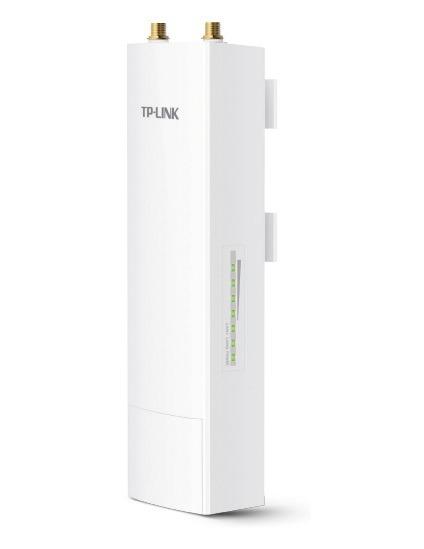

5GHz 300Mbps Outdoor Wireless Base Station TP-LINK WBS510
- Broad operating frequency channels ensure less wireless interference.
- Wireless N speed up to 300Mbps.
- Selectable bandwidth of 5/10/20/40MHz.
- Adjustable transmission power from 1 to 27dBm/500mW.
- 2 RP-SMA connectors for external MIMO antenna.
- Work with TP-LINK dish antenna for long-distance wireless data transfer up to 50 km.
- 1 x 10/100/1000Mbps Ethernet port for passive PoE and 1 x 10/100Mbps Ethernet port for extended applications.
- TP-LINK Pharos MAXtream (Time-Division-Multiple-Access) technology improves product throughput, capacity and latency performance, ideal for PtMP applications.
- Centralized Management System – Pharos Control.
- Supports AP Router, AP Client Router, AP, AP Client, Multi-Bridge and Repeater Operation modes.
- Weatherproof enclosure, 15kV ESD and 6KV lightning protection.
Specifications
Processor | Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc |
Memory | 64MB DDR2 RAM, 8MB Flash |
Interfaces | 1 10/100/1000Mbps Shielded Ethernet Port (LAN0/ POE) |
1 10/100Mbps Shielded Ethernet Port (LAN1) | |
2 RP-SMA | |
1 Grounding Terminal | |
1 Reset Button | |
Protection | 15KV ESD Protection |
6000V Lightning Protection | |
Enclosure | Outdoor ASA stabilized plastic material |
IP65 water and dust proof Certification | |
Wireless Standards | IEEE 802.11a/n |
Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
Wireless Speeds | Up to 300Mbps (40MHz, Dynamic) |
Up to 144.4Mbps (20MHz, Dynamic) | |
Up to 72.2Mbps (10MHz, Dynamic) | |
Up to 36.1Mbps (5MHz, Dynamic) | |
Frequency | 5.15 ~ 5.85GHz |
Transmission Power | 27dBm/ 500mW (Adjustable power by 1dBm) |
Operating Modes | AP/ Client/ Bridge/ Repeater |
AP Router Mode/ AP Client Router (WISP Client) Mode | |
Network Configuration | WAN: Static/ Dynamic/ PPPoE/ L2TP/ PPTP |
LAN: Static/ Dynamic/ Dynamic/ DHCP | |
Forwarding: DMZ/ ALG/ UPnP/ Virtual Server/ Port Trigger | |
Security: SPI Firewall/ Ping Forbidden/ VPN/ DOS Protection | |
Access Control | |
Static Routing | |
Bandwidth Control | |
IP & MAC Binding | |
Wireless Configurations | Pharos MAXtream TDMA Technology |
802.11a/n Modes | |
Selectable Channel Width: 5/10/20/40MHz | |
Automatic Channel Selection | |
Transmission Power Control | |
Dynamic Frequency Selection (DFS) | |
WDS Enable/Disable | |
Security: WPA/ WPA2, WPA-PSK/ WPA2-PSK (AES/ TKIP) Encryption, 64/128/152-bit WEP Encryption | |
SSID Broadcast Enable/Disable | |
Multi-SSID with VLAN Tagging (AP mode only) | |
Distance/ ACK Timeout Setting | |
Wireless MAC Address Filter | |
Wireless Advanced: | |
> Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia | |
Management | Discovery and Remote Management via Pharos Control application |
HTTP/ HTTPS Web-based management | |
System Log | |
SNMP Agent (v2c) | |
Ping Watch Dog | |
Dynamic DDNS | |
SSH Server | |
System-level Optimizations | 802.11a/n Tx beamforming technology |
Optimized IGMP Snooping/ Proxy for multicast applications | |
Hardware watch dog | |
Certification | CE, FCC, RoHS, IP65 |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
Dimensions | 189 x 75 x 32 mm |
