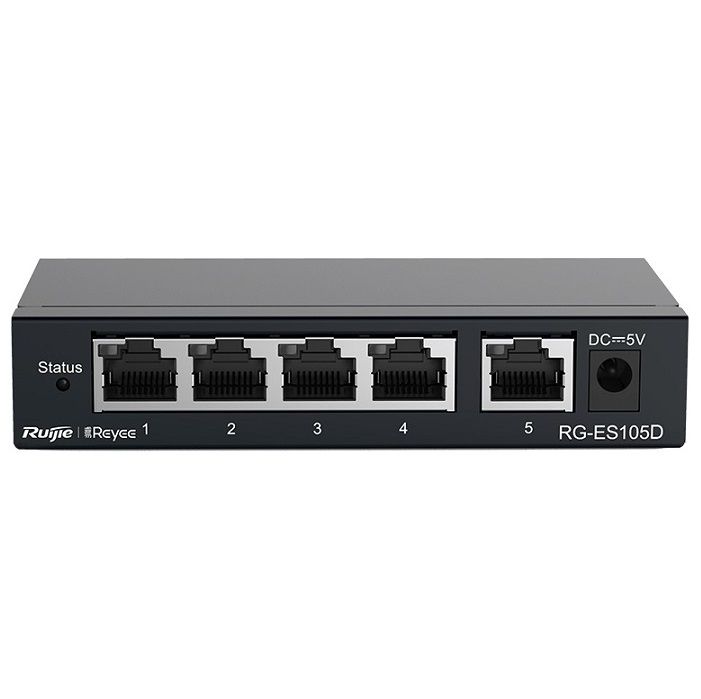

5-port 10/100Base-T Unmanaged Switch RUIJIE RG-ES105D
- Supports self-adaptive ports and plug-and-play feature with zero configuration.
- The entire casing is made of metal which provides better heat dissipation.
- The compact size allows easy installation in the ELV box at home or the waterproof surveillance junction box, as it only takes up little space.
- The high-quality 8-core network cable and enterprise-grade components ensure no packet loss or lagging for data transmission.
Specifications
| Model | RG-ES105D |
| Ports | 5 10/100Mbps RJ45 ports |
| Maximum port forwarding rate | 100Mbps |
| Auto-MDI/MDIX | Support |
| MAC address | 1K |
| Backplane bandwidth | 1Gbps |
| Maximum packet forwarding rate | 744Kpps |
| LED indicator | Link/Act status LED indicator for each port, Power indicator |
| Dimensions | 119 x 62 x 24 mm |
| Power input / output | External 5VDC 1.0A |
| Maximum power consumption | ≤5W |
| Temperature | Operating temperature: 0°C ~ 40°C Storage temperature: -40°C ~ 70°C |
| Humidity | Operating humidity: 10% ~ 90% non-condensing Storage humidity: 5% ~ 90% non-condensing |
- Bảo hành: 3 năm.
