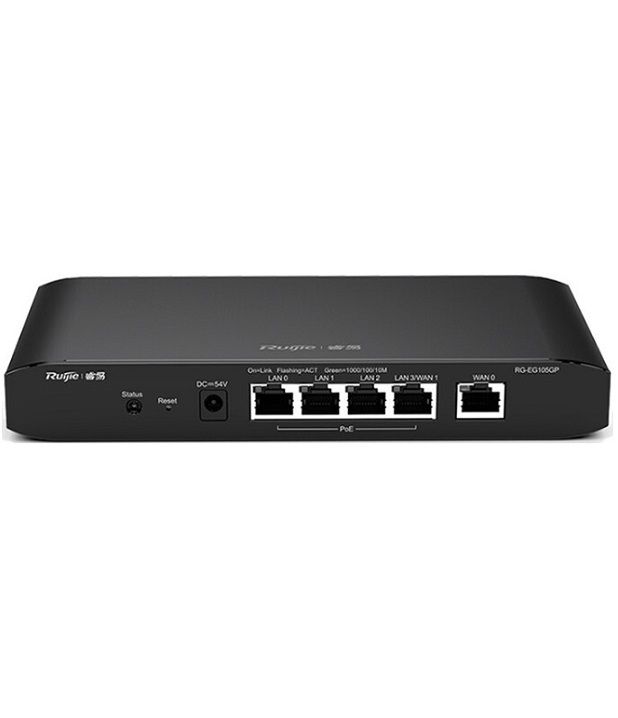

5-port Gigabit Cloud Managed Router RUIJIE RG-EG105G-P
Features
Port Isolation for security CCTV network
- RG-EG series supports per-port VLAN and network segment division, and provides a cascade port for surveillance switch expansion, isolating the surveillance network and data network.
Multiple WAN Policies
- Supports PPPoE, static IP, dynamic IP, and other WAN port connection modes, as well as smart routing based on the carrier address database, and policy-based routing for load balancing and active/standby switching. It also supports load balancing based on source addresses so that services such as online banking login will no longer fail due to IP conversion.
Copying the Dial-up Password
- By obtaining the dial-up account password from the existing router, users do not have to worry about forgetting the password when replacing the router.
IP sec VPN
- Provide VPN services for headquarters and branches, up to 8 branches.
Network Management
- When RG-EG is used as an egress gateway, it can also serve as a unified controller for the entire network. The industry-leading unified network controller for router+ switch + wireless can manage up to 150 APs and 120 cloud managed switches.
Specifications
| Model | RG-EG105G-P |
| Port | 5 10/100/1000M Base-T ports, supporting up to 2 WAN ports (Default: 1 WAN port, 4 LAN ports, LAN3 can be switched to WAN1 port) |
| RAM | 128MB |
| Flash | 16MB |
| Maximum number of clients | Up to 100 concurrent clients |
| Recommended bandwidth | 500M asymmetric bandwidth (flow control disabled) 300M asymmetric bandwidth (flow control enabled) |
| Local power supply | Support 220V AC local power supply |
| Power consumption | <60W (With PoE load) |
| Network | |
| Network access | PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers |
| Routing | Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams |
| Security | ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping |
| Other protocols | DHCP Server, DHCP Client, DHCP Option43/ 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS |
| Gateway | |
| Flow control | Support custom flow control policies, IP-based automatic bandwidth assignment |
| Traffic audit | Real-time traffic audit, IP traffic visualization |
| Behavior management | Time-based and IP policy-based access control |
| VPN | IPsec VPN (8 tunnels) server and client |
| Wireless management | |
| Management capacity | In AC mode, the maximum management capacity is 300 In gateway mode, the maximum management capacity is 32 |
| AP management | Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist |
| Roaming | Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track |
| Switch management | |
| Management capacity | Maximum manageable cloud managed switches: 128 |
| Port management | Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search |
| Status display | Port statistics, monitoring information, cable detection, VLAN configuration, MAC list |
| Upgrade management | Per-device upgrade, batch upgrade |
| Value added features | |
| Featured solutions | Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution |
| Management | Eweb and Ruijie Cloud |
| Physical | |
| Dimensions | 206.5×108.5×28 (mm) |
| Weight | 0.84kg |
| Working Temperature | 0℃~40℃ |
| Storage temperature | -10℃~70℃ |
| Working humidity | 10%~90% RH non-condensing |
| Storage humidity | 5%~95% RH non-condensing |
- Bảo hành: 3 năm.
