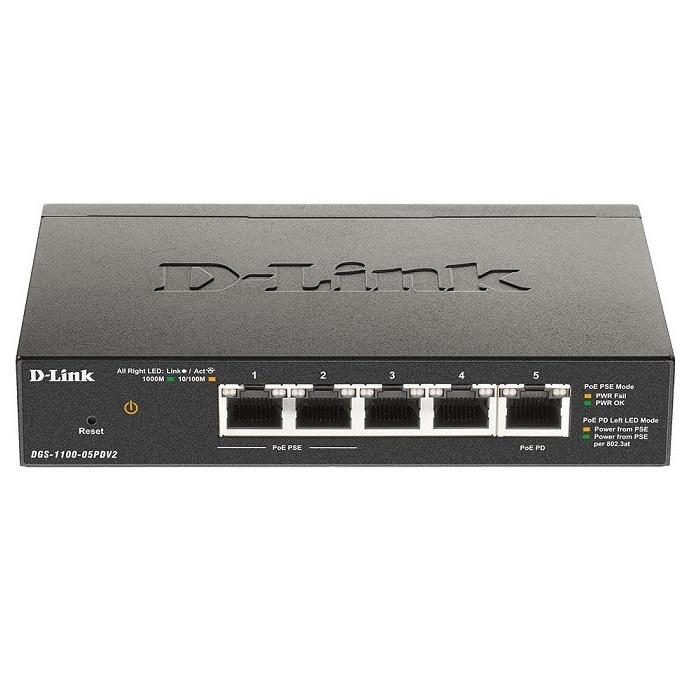

5-Port Gigabit PoE Smart Managed Switch D-Link DGS-1100-05PDV2
- 5 x 10/100/1000BASE-T ports
- Powered by IEEE 802.3af/at PoE through port 5
- Supports PoE Pass-through (ports 1 and 2 only)
- Compact design for convenient placement
- Fanless design for silent operation
- Innovative D-Link Green energy saving features
- Complete web interface for comprehensive switch management
Đặc tính kỹ thuật
| Model | DGS-1100-05PDV2 |
| General | |
| Hardware Version | A1 |
| Size | Desktop |
| Number of Ports | 2 x 10/100/1000 Mbps (PoE) 3 x 10/100/1000 Mbps |
| Port Functions | IEEE 802.3 for Ethernet IEEE 802.3u for Fast Ethernet IEEE 802.3ab for Gigabit Ethernet IEEE 802.3af Auto-negotiation Supports half/full-duplex operation (half at 10/100 Mbps, full at 1000 Mbps) Auto MDI/MDIX IEEE 802.3x Flow Control supports full-duplex mode IEEE 802.3az compliant |
| Performance | |
| Switching Capacity | 10 Gbps |
| Maximum Forwarding Rate | 7.44 Mpps |
| MAC Address Table Size | 2K entries |
| Packet Buffer | 1 Mbits |
| Flash Memory | 2 Mbytes |
| PoE | |
| PoE Standard | IEEE 802.3af |
| PoE Capable Ports | Ports 1 to 2 |
| PoE Power Budget | PoE Passthrough: 18 W with 802.3at input 8 W with 802.3af input |
| Power Consumption | |
| Standby Mode | 1.728 W |
| Maximum Power Consumption | 24.08 W (PoE on) 3.24 W (PoE off) |
| Physical | |
| Power Input | 802.3af/at PoE power only via PD port 5 No power supply |
| MTBF | 2,357,475 hours |
| Acoustics | 0 dB(A) |
| Weight | 0.38 kg |
| Dimensions | 150 x 97 x 28 mm |
- Bảo hành: 3 năm.
