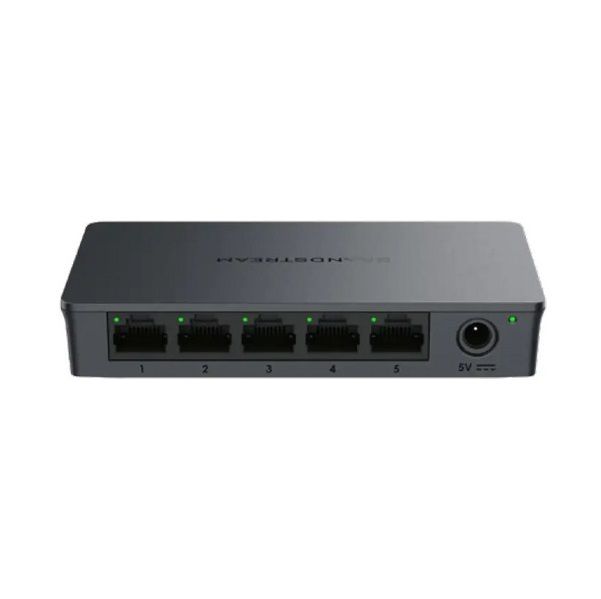

5-Port Gigabit Unmanaged Network Switch Grandstream GWN7700
- Support 5 × 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX.
- Mac Address Table: 2K.
- Switching Capacity: 10Gbps.
- Jumbo Frame: 9KB.
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at.
- LED Indicators: Per port: Link/Activity Green; Per device: Power Green.
- Dimensions (L x W x H): 120 x 65 x 24.5 mm.
Thông số kỹ thuật
| Gigabit Ports | 5 |
| Enclosure | Plastic |
| Connector Type | Plastic |
| Mounting | Desktop/ Wall-Mount |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Port Feature | 5× 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
| Network Media | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| LED Indicators | Per port: Link/Activity Green Per device: Power Green |
| Mac Address Table | 2K |
| Switching Capacity | 10Gbps |
| Jumbo Frame | 9KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP: •IGMP Fast-Leave •IGMP Snoop •Route Port Autolearn •Query Refresh Member Port |
| Power Adapter | External 5V/0.6A |
| Max Power Consumption by Base Station | 1.7W |
| Environmental | Operating Temperature: 0 to 40 °C (32 to 104 °F) Storage Temperature: -40 to 70 °C (-40 to 158 °F) Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 5% to 90% Non-condensing |
| Dimensions (L x W x H) | Unit:120 x 65 x 24.5mm |
| Weight | 0.1kg |
| Compliance | FCC, CE, RCM, IC, UKCA |
- Bảo hành: 24 tháng.
