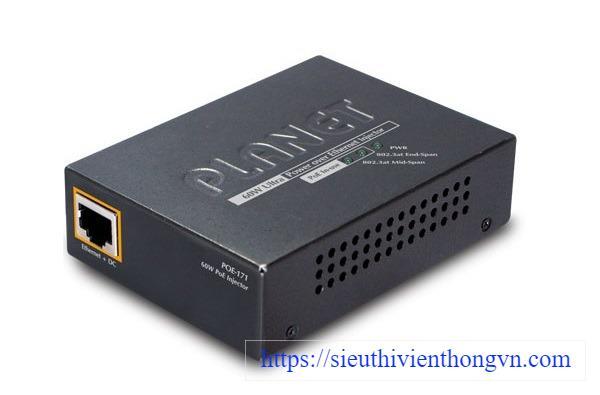

60W Ultra PoE Ethernet Injector PLANET POE-171
Interface
- 1-Port RJ-45 Data + Power output
- 1-Port RJ-45 Data input
- 1 DC 52~56V input power socket
Power over Ethernet
- Ultra Power over Ethernet End-Span/Mid-Span PSE
- IEEE 802.3at/af PoE standard compliant
- Compatible with All IEEE 802.3at/af powered devices
- Supports 56VDC, 60-watt PoE power output at maximum
- Auto-detection of PoE IEEE 802.3at/af equipment and device for possible damage by incorrect installation
- Automatic detection and protection of non–standard Ethernet terminals
- Remote power feeding up to 100 meters
Hardware
- Compact size metal case
- LED indicators for power LED and PoE In-use LED
Specifications
| Model | POE-171 |
| Hardware | |
| Interface | 1-Port RJ-45 Data + Power output 1-Port RJ-45 Data input 1 DC 52~56V input power socket |
| Network Cable | Ultra PoE (60W): 10/100/1000Base-T: 4-Pair UTP Cat. 5e, 6 up to 100m 802.3af /at PoE(15W / 30W): 2-Pair UTP Cat. 3, 5, 5e, 6 up to 100m |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 95 x 70 x 26 mm |
| Weight | 237g |
| Unit Output Voltage | DC 54V |
| Power Requirements | External AC-to-DC adapter 100-240V AC, 50/60Hz, 1.5A |
| Power Consumption | 65W max. |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at High Power over Ethernet End-span / Mid-span PSE |
| PoE Power Supply Type | End-Span + Mid-Span |
| PoE Power Output | DC 54V / 60-watt PoE via 4-pairs DC 54V / 30-watt PoE via 2-pairs |
| Environment | |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -10 ~ 70°C |
| Operating Humidity | 5 ~ 95%, Relative Humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, Relative Humidity, non-condensing |
- Bảo hành: 12 tháng.
