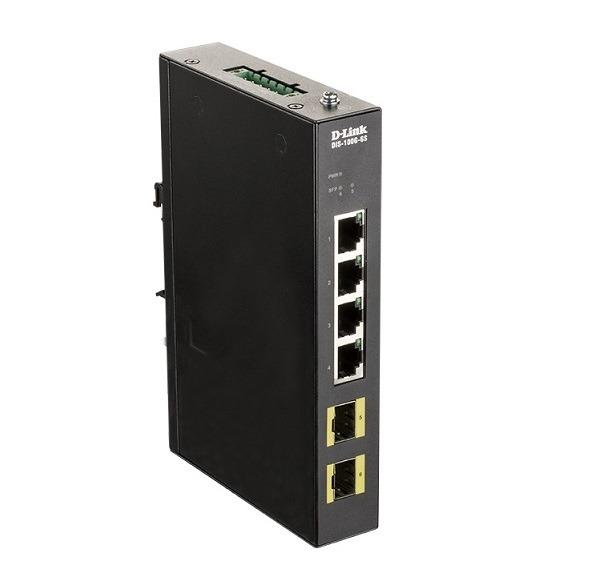

6-port Gigabit Unmanaged Industrial Switch D-Link DIS-100G-6S
Adaptable Applications
- 4 x 10/100/1000BASE-T ports
- 2 x SFP port
- SFP ports for long distance connections
- Plug-and-play installation
- Din-rail mounting
Robust and High-Redundancy Design
- Fanless, passive cooling design
- Industrial grade operating temperature
- High EMS endurance
- Ingress protection
- Dual power input for redundant power supplies
- Built-in 6 kV surge protection on copper ports
Advanced Features
- 9 KB Jumbo Frame
- IEEE 802.3x Flow Control
- IEEE 802.1q Quality of Service (QoS)
- IEEE802.3az Energy Efficient Ethernet
Specifications
| Model | DIS-100G-6S |
| Interfaces | |
| Number of Ports | 4 x 10/100/1000BASE-T ports 2 x SFP port |
| Port Functions | IEEE 802.3 for Ethernet IEEE 802.3u for Fast Ethernet IEEE 802.3ab for Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Media Interface Exchange | Auto-MDI/MDIX adjustment for all twisted pair ports |
| Performance | |
| Switching Capacity | 12 Gbps |
| Max. Forwarding Rate | 8.928 Mpps |
| MAC Address Table Size | Up to 4K entries |
| Transmission Method | Store-and-forward |
| Jumbo Frame | 9.6 KB |
| Advanced Features | IEEE 802.1p Quality of Service (QoS) - 8 hardware queues per port |
| Physical | |
| Diagnostic LEDs | PWR, SFP, Link/Activity |
| Power input | 12 to 48 VDC terminal block dual input |
| Power Consumption | Maximum: 4.82 W Standby: 2.45 W |
| Alarm Relay | 1 A at 24 V |
| Heat Dissipation | 16.44 BTU/hr |
| Dimensions (W x D x H) | 162 x 102 x 28 mm |
| Weight | 0.4458 kg |
| Ventilation | Fanless, passive cooling |
| Operating Temperature | -20 to 65 °C |
| Storage Temperature | -40 to 85 °C |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Storage Humidity | 5% to 95% RH, non-condensing |
- Bảo hành: 36 tháng.
