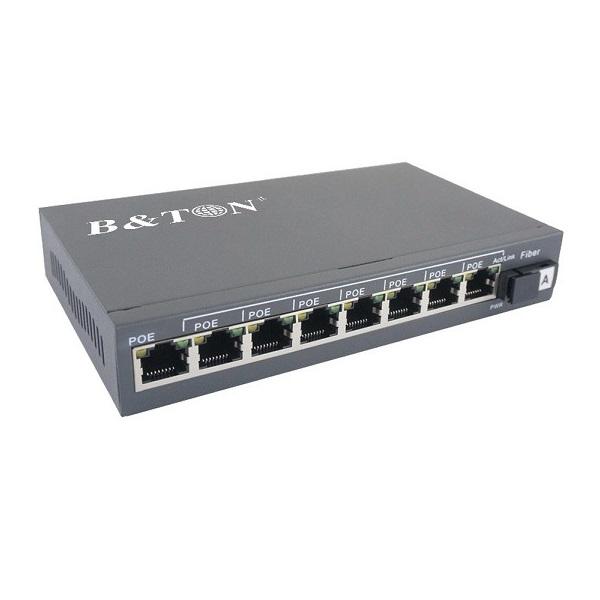

8 port 10/100Mbps PoE Switch BTON BT-6108FE-25
-8 ports 10/100Base-T(X) PoE ports and 1 port 10/100Base-F(X).
-Tích hợp 8 port 10/100Base-T(X) PoE and 1 port10/100Base-F(X).
-Chuyển đổi quang điện Single Mode.
-Khoảng cách truyền: 25 km.
-Bước sóng quang hoạt động: 1310nm.
-Ngõ giao tiếp quang: Connector SC.
-Ngõ giao tiếp mạng: RJ45.
-Tương thích các chuẩn: IEEE 802.3af.
-Các đèn LED chỉ thị nguồn, PoE, Fiber.
-Công suất tiêu thụ: 15.4W cho mỗi port.
Features
-IEEE 802.3af/at power on the POE port
-Supply power to wireless access points and surveillance cameras over Cat cable
-POE ports support MDI/MDIX
-Support PoE power up to 15.4W(IEEE802.3af)/25.5W(IEEE802.3at) for PoE ports
-POE Lines: End-Span(12+,36-), Mid-Span(25+,78-).
-Support IEEE 802.3x flow control for Full-duplex Mode and back-pressure for Half-duplex Mode
-LED indicators for monitoring power, link, activity and speed
-Working Environment: Operating Temperature: 0° ~ 55 °C; Storage Temperature: -20 ° ~ 75 °C.
-Operating Humidity: 10% ~ 95%, non-condensing.
-Forwarding Mode: Store-And-Forward.
-MTBF: 100,000 hours.
Specifications
| POE Port | 8 port POE |
| Uplink | 1 port RJ45 |
| Bandwidth | 1.8Gbps (non-blocking) |
| Address Database Size | 1K |
| MTBF | 190,000 hours |
| Forwarding Mode | Store-And-Forward |
| Network Protocols | IEEE 802.3,IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3af /IEEE 802.3at,IEEE 802.3x Flow control, IEEE 802.1q VLAN(optional) |
| LED Display | Power, POE, Ethernet |
| Power Supply | 52VDC, 1.25A/2A |
| PoE Port Power | 15.4W |
| PoE Standard | IEEE 802.3af/at |
| PoE Feature | All ports support MDI/MDIX |
| Working Environment | Operating Temperature: 0 ° ~ 55 ° C; |
| Storage Temperature: -20 ° ~ 75 ° C; | |
| Operating Humidity: 10% ~ 95%, non-condensing | |
| Transmission Distance | 100meter |
-Sản xuất tại Trung Quốc.
-Bảo hành: 15 tháng (Adaptor bảo hành 6 tháng).
