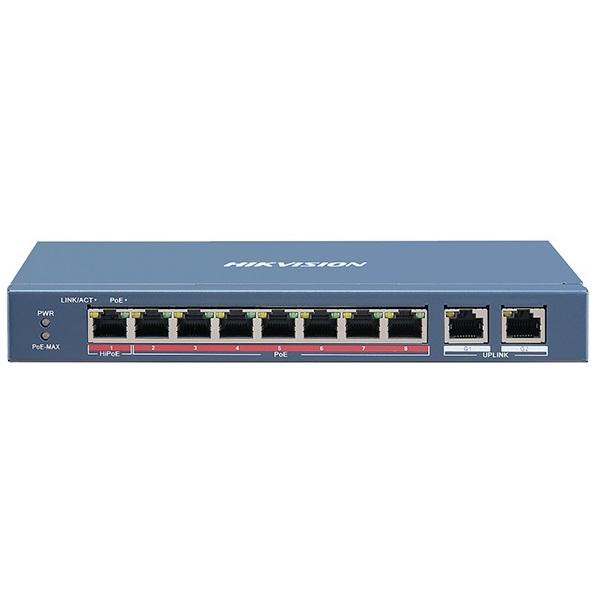

8-port 10/100Mbps Switch PoE + 2-port Uplink HIKVISION DS-3E0310HP-E
- 1 x 10/100Mbps Hi- PoE port.
- 7 x 10/100Mbps PoE port.
- 2 x 10/100/1000Mbps Uplink Port.
- Tiêu chuẩn PoE: 802.3af, 802.3at, 802.3bt
- Công suất PoE tối đa 120W.
- Tích hợp công nghệ PoE Extend (tối đa 250m).
- Nguồn điện: 48VDC.
- Kích thước: 217×27.8×103.35mm.
- Trọng lượng: 550g.
Features
- Intelligent PoE Management.
- Up to 300 m Long Range PoE Transmission.
- IEEE 802.3bt Standard Hi-PoE, Max. 90 W for One Port.
- 4/8-Core Adaptive Power Supply with Less Power Loss.
- 6KV Surge Protection to Improve Reliability in Harsh Environment.
Đặc tính kỹ thuật
| Model | DS-3E0310HP-E |
| PoE Power Supply | |
| PoE Standard | Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 2 to 8: IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | Support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide power supply simultaneously |
| PoE Port | Ports 1 to 8 |
| Max. Port Power | Port 1: 90 W Ports 2 to 4: 30 W |
| PoE Power Pudget | 110 W |
| Max. Power Consumption | 120 W |
| Port Number | 1 × 10/100 Mbps Hi-PoE port, 3 × 10/100 Mbps PoE ports, and 2 × 10/100 Mbps RJ45 ports |
| Port Type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z |
| Forwarding Mode | Store-and-forward switching |
| Working Mode | Standard mode (default); Extend mode |
| Ports For Long-Distance Transmission | Ports 1 to 8 |
| MAC Address Table | 16K |
| Switching Capacity | 5.6Gpps |
| Packet Forwarding Rate | 4.166 Mpps |
| Internal Cache | 4Mbits |
| General | |
| Power Supply | 48 VDC, 2.5 A |
| Power Consumption In Idle | 10W |
| Shell | Metal material, fan-free design |
| Dimension | 1217.6 mm × 27.8 mm × 103.35 mm |
| Gross Weight | 1.22 kg |
| Net Weight | 0.55 kg |
