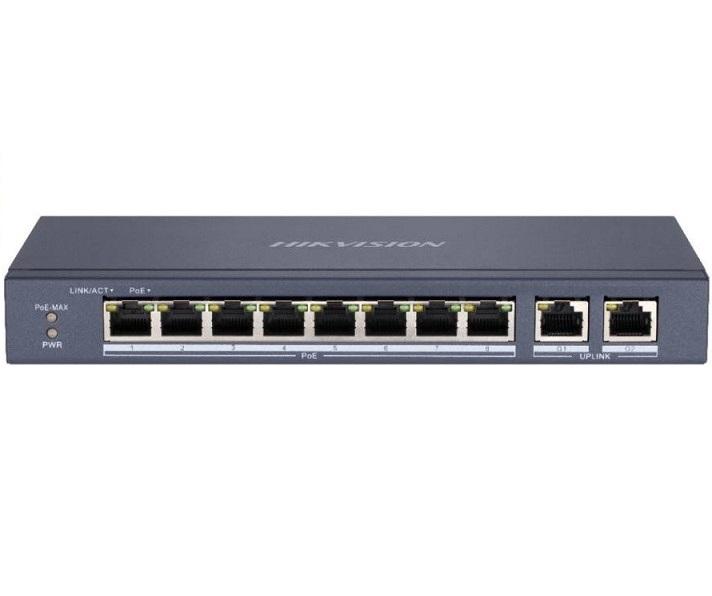

8-port 10/100Mbps Unmanaged PoE Switch HIKVISION DS-3E0310P-E/M
- 8 × 10/100Mbps PoE ports, and 2 × Gigabit RJ45 port.
- IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
- 6 KV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
Đặc tính kỹ thuật
| Network parameters | |
| Number of ports | 8 × 10/100Mbps PoE ports, 2 × Gigabit RJ45 ports |
| Port type | RJ45, full duplex, MDI / MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Switching method | Store-and-forward switching |
| Work mode | Standard mode (default), Extend mode |
| Ports for long-distance transmission | Ports 1 to 8 |
| MAC address table | 16K |
| Switching speed | 5.6 Gbps |
| Packet Forwarding Rate | 4.1664 Mpps |
| Internal cache | 4 Mbits |
| Power over PoE | |
| PoE standard | Ports 1 to 8: IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously. |
| PoE port | Ports 1-8 |
| Max. port capacity | Ports 1 to 8: 30 W |
| PoE Power Budget | 60 watts |
| Dial function | |
| Long distance transmission of information | Ports 1 to 8: up to 300 m |
| General | |
| Shell | Metal material, fan-free design |
| Net weight | 0.555 kg |
| Dimensions | 217.6 mm × 103.35 mm × 27.8 mm |
| Working temperature | -10 to +40 ° C |
| Storage temperature | -40 to +85 ° C |
| Working humidity | 5% to 95% (non-condensing) |
| Storage humidity | 5% to 95% (non-condensing) |
| Nutrition | DC 48 V, 0.8 A |
| Standby power consumption | less than 5 W |
| Max. power consumption | 65W |
| Power supply | 65W |
- Bảo hành: 24 tháng.
