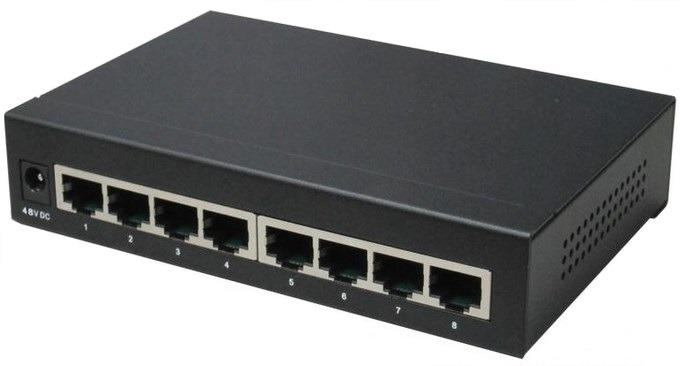

8-port Gigabit 10/100/1000 Mbps PoE Switch IONNET IGE-804 (120 Watt)
– Bao gồm 8-port PoE, công suất 120Watt.
– Hỗ trợ Class2/ Class3/ Class4.
– Hỗ trợ 802.3af và 802.3at.
– PoE+ green Power saving.
– Green Ethernet.
OverView
IGE-804 (120) series are 8 10/100/1000Mbps port Power over Ethernet switch which consists of 4 PSE/PoE ports. The models compliant to PoE+ IEEE 802.3at and 802.3af, it denes new green power saving idea on PSE Port. That can solve the limitation of the power outlet location and
offer the system relocation easily. The case is designed for home user and small area application.
Product Features
– Providing 8 ports of 10/100/1000Mbps TX Switching port
– Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
– Complying with 802.3x Flow Control and IEEE-802.3af PoE and IEEE802.3at
– 4 Ports PSE/ PoE function, compliant with IEEE-802.3af class3 /class 2 / class 1 and IEEE802.3at
– Supporting the power up to Max 30Watt for each PSE/PoE port
– Supporting the flow control: Back pressure for Half-duplex and IEEE 802.3x for Full-duplex mode
– All ports support Auto-MDIX function
– Being dedicated 2000Mbps Full-duplex bandwidth to the each port
– Broadcast storm control and supporting store & forward operation
– Non-blocking & Non-head-of-line blocking full-wire speed forwarding
– Auto-learning networking congurations
– Built-in 1024 MAC learning table, 96K byte bu‑er memory
– Filtering/ Forwarding Rate: 1000Mbps/ 1488,000pps 100Mbps/ 148,800pps; 10Mbps/ 14,880pps
– Supports packet length 1522 bytes/ Maximum 1536bytes
– Jumbo frames: 9K
– Status LEDs: System Power, 10/100M Link/Activity and PoE/PSE on line
– Network Transmission Media: 10Base-T Cat. 3, 4, 5 UTP/STP; 100Base-TX Cat. 5 UTP/STP, 1000BASE-T Cat. 5E UTP/STP.
– External power supply: 48V DC input
– Operating Temperature: 0° C ~ 40° C
– Storing Temperature: -20° C ~ 90° C
– Humidity: 10% ~90% RH (Non-condensing)
– Dimension: 155 x 94 x 26 mm
– Power consumption: 120Watt
– Weight: 450g
– Safety & EMI Certificates: CE & FCC
– Smart plug & play
– PoE+ Green power Management Features
– Link up mode: auto detects the level class of Power device, budgets power output for each port.
– Power down mode: auto detect no link/ standby of Power device
Technical Speacifications
Standards | IEEE 802.3 10BaseT |
IEEE 802.3u 100BaseTX | |
IEEE802.3ab 1000BaseT | |
IEEE802.3af PoE | |
IEEE802.3at PoE+ (high power) | |
Features | Number of Ports: |
8 x 10/100/1000BaseT with RJ-45 Connector | |
4 PSE ports with RJ-45 connectors | |
Data Transfer Rate | Ethernet: 10Mbps/Half-Duplex |
20Mbps/Full-Duplex | |
Fast Ethernet: 100Mbps/Half-Duplex | |
200Mbps/Full-Duplex | |
Gigabit: 1000Mbps/ Half-Duplex | |
2000Mbps/Full-Duplex | |
Transmission Media | 10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m |
100BaseTX Cat. 5 UTP/STP, up to 100 m | |
1000Base T cat 5,6 UTP, up to 100m | |
Led Indicators | Per Port: |
(TX): 10/100/1000M Link/Act, PoE | |
Per Unit: Power | |
Power Requirement | 48V DC in UL / TUV / CB Safety |
Power Consumption | 120Watt |
Dimensions | 155 x 94 x 26 mm (L x W x H) |
Weight | 450g |
– Sản xuất tại Taiwan
– Bảo hành: 12 tháng
