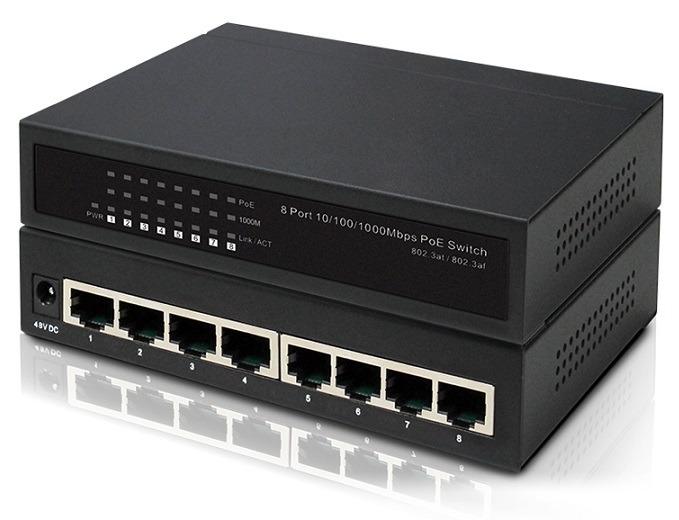

8-Port Gigabit 10/100/1000Mbps PoE Switch IONNET IGE-808 (65 Watt)
– Bao gồm 8-Port PoE, công suất 65 Watt
– 8 ports Gigabit 10/100/1000 Mbps Switch with 8 ports IEEE802.3af/ 802.3at (PoE+)
– Metal case
– 8 ports 10/100Mbps with 8 PSE ports
– Complies with IEEE802.3 10Base-T
– Complies with IEEE802.3u 100Base-TX
– Complies with 802.3x Flow Control
OverView
IGE-808 (65) series are 8 10/100/1000M port Power over Ethernet switch which consists of 8 PSE/PoE ports. The models comply with 802.3af. It defines new green power saving idea on PSE Port. That can solve the limitation of the power outlet location and offer the system relocation easily. The case is designed for home user and small area application.
Features
– 8 ports 10/100Mbps with 8 PSE ports
– Complies with IEEE802.3 10Base-T
– Complies with IEEE802.3u 100Base-TX
– Complies with 802.3x Flow Control
– Complies with IEEE-802.3az Green Ethernet
– Complies with IEEE-802.3af
– Max. 30Watt each PSE/PoE port
– Broadcast storm control
– Auto-learning networking configurations
– 4K MAC table/ 96K bytes buffer memory
– Packet length Max. 1600 bytes
– 9K Jumbo frame
– LED indicators: System Power, Link/Activity and PoE/PSE
– External power supply: 48VDC input
– Power Consumption: 5 Watt
– Maximum Supply PoE Power per device: 115 Watt
– Operating Temperature: 0 ºC ~ 55 ºC
– Storing Temperature: -20 ºC ~ 90 ºC
– Humidity: 10% ~90% RH (Non-condensing)
– Dimension (L x W x H): 141 x 94 x 30 mm
– Weight: 323g
– Safety & EMI Certificates: CE & FCC
– Smart plug & play
– PoE+ Green power Management Features
– Link up mode: auto detects the level class of Power device, budgets power output for each port.
– Power down mode: auto detect no link/ standby of Power device
Specification
Standards | IEEE 802.3 10BaseT |
IEEE 802.3u 100BaseTX | |
IEEE802.3ab 1000BaseT | |
IEEE802.3af PoE | |
IEEE802.3at PoE+ ( high power ) | |
Features | Number of Ports: |
8 10/100BaseT with RJ-45 Connector | |
8 port PoE ports | |
Data Transfer Rate | Ethernet: 10Mbps/Half-Duplex |
20Mbps/Full-Duplex | |
Fast Ethernet: 100Mbps/Half-Duplex | |
200Mbps/Full-Duplex | |
Gigabit: 1000Mbps/ Half-Duplex | |
2000Mbps/Full-Duplex | |
Transmission Media | 10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m |
100BaseTX Cat. 5 UTP/STP, up to 100 m | |
1000Base T cat 5,6 UTP, up to 100m | |
Led Indicators | Per Port: (TX): Link/Act, |
Per Unit: Power, PoE function | |
Power Requirement | 48V DC in |
Maximum Supply PoE per Device | 65 Watt |
Power Consumption | 5 Watt |
Dimensions | 141 x 94 x 30 mm (L x W x H) |
Weight | 323 g |
Humidity | 10 to 90% RH (non-condensing) |
Certifications | FCC Class A , CE |
– Sản xuất tại Taiwan
– Bảo hành: 12 tháng
