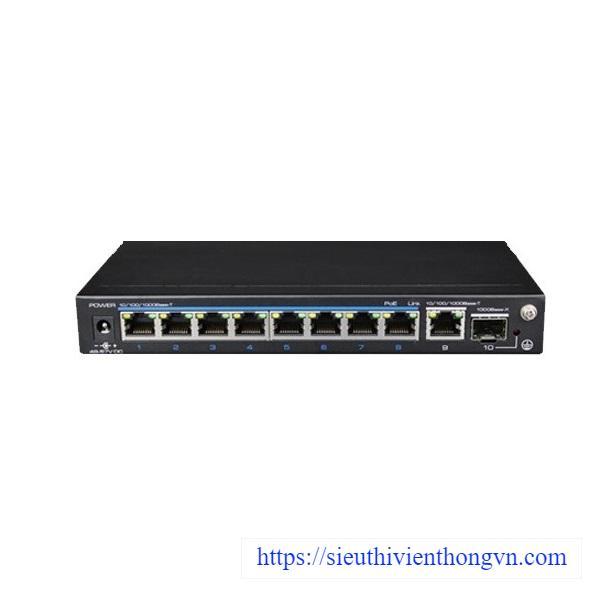

8-Port 10/100Mbps PoE Switch IONNET IFE-1008G-120
- Major ports 2* Gigabit uplink Ethernet ports, which design is convenient to connect external network system; 8* 10/100Mbps downlink PoE Ethernet ports, each of them supports MDI/MDI X.
- Special Function One Key CCTV Mode: Support VLAN and restrain network storm; 1~8 downlink ports can only communicate with uplink ports; the further transmission distance up to 250m in CCTV mode with the transmission speed rate 10Mbps.
- Input Power: DC48V~57V.
- Transmission Distance: Default mode, the distance of Ethernet port is 100m; CCTV mode, the distance of downlink 1~8 ports up to 250m.
- Standard Accord with IEEE802.3, IEEE802.3u, IEEE802.Saf, IEEE802.3at standard; PoE meets End-Span.
- Protection superior lightning protection up to 6KV, excellent ESD protection and anti-interference ability.
Specifications
| Model | IFE-1008G-120 |
| Downstream Ports | 8*10/100Base-TX (PoE) |
| Uplink Ports | 2*10/100/1000Base-T |
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3X |
| Switch Capacity | 5.6Gbps |
| Throughput | 4.2Mpps |
| Switch Processing Scheme | Store and Forward |
| Memory Buffer | 1.5M |
| MAC Table | 4K |
| PoE Standard | 802.3af/at (PSE) |
| PsE Type | End- span |
| Power Pin Assignment | 1/2(+), 3/6(–) |
| PoE Power Output | 44~57V DC , 30 watts max |
| PoE Budge | 120 watts max |
| Lightning protection | 6KV Execute: IEC61000-4-5 |
| ESD | 6KV Contact discharge 8KV Air discharge Execute: IEC61000-4-2 |
| Power Supply | DC 48V~57V |
| Power Dissipation | <5W |
| Working temperature | -10°C~55°C |
| Storage temperature | -40°C ~85°C |
| Humidity (Non condensin) | 5%-95% |
| Dimensions (LxWxH) | 200×101.8×27mm |
| Weight | 500g |
- Bảo hành: 12 tháng.
