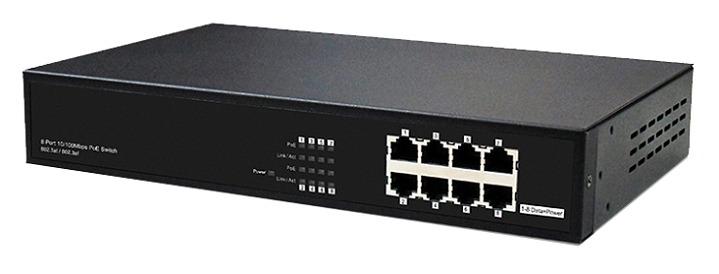

8-Port 10/100Mbps PoE Switch IONNET IFS-808 (130Watt)

8-Port 10/100Mbps PoE Switch IONNET IFS-808 (130Watt)

  • MS 000006699
  • IONNET
Giá : 4,080,000 vnđ (Đã bao gồm VAT)

8-Port 10/100Mbps PoE Switch IONNET IFS-808 (130Watt)

8-Port 10/100Mbps PoE Switch IONNET IFS-808 (130Watt)

-       Bao gồm 8-Port PoE, công suất 130 Watt.

-       Nguồn điện: 90-260VAC.

-       8 port PSE Fast Ethernet PoE switch

-       Complies with IEEE802.3 10Base-T

-       Complies with IEEE802.3u 100Base-TX

-       Complies with 802.3x Flow Control

-       Complies with IEEE-802.3az Green Ethernet

OverView

-       IFS-808 (130) series are 8 10/100M port Power over Ethernet witch which consists of 8 PSE/PoE ports with compliant to POE+ IEEE 802.3at and 802.3af, it supports the power up to 30Watt and new green power saving idea on each PSE/PoE Port. That can solve the limitation of the power outlet location and offer the system relocation easily. The case is designed for small office and can be upgrade to 1U” chassis.

Features

-       8 Port PSE/ PoE function, compliant with IEEE-802.3af and IEEE802.3at

-       Supporting the power up to 30Watt for each PSE/PoE port

-       Providing 8 10/100Mbps switching ports

-       Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,

-       Supporting the flow control: back pressure for Half-duplex and IEEE 802.3x for Full-duplex mode

-       All ports support Auto-MDIX function

-       Being dedicated 200Mbps Full-duplex bandwidth to the each port

-       Non-blocking & Non-head-of-line blocking full-wire speed forwarding

-       Auto-learning networking configurations

-       Store-and-Forward switching methods

-       Built-in 4K MAC learning table, 1.25M bits buffer memory

-       Filtering/Forwarding Rate: 100Mbps/148,800pps; 10Mbps/14,880pps

-       Supporting packet length 1600 bytes

-       Status LEDs: System Power, Link/Activity, and PoE/PSE on line

-       Smart plug & play

-       PoE+ Green power Management

-       Link up mode: auto detects the level class of Power device, budgets power output for each port.

-       Power down mode: auto detect no link/ standby of Power device

Specification

Standards

IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX/100BaseFX
IEEE 802.3af PoE
IEEE 802.3at PoE+
IEEE 802.3X Flow control

Features

Number of Ports:
8 10/100BaseT with RJ-45 Connector
8 PSE ports with RJ-45 connector

Data Transfer Rate

Ethernet:
10Mbps/Half-Duplex
20Mbps/Full-Duplex
Fast Ethernet:
100Mbps/Half-Duplex
200Mbps/Full-Duplex

Transmission Media

10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m
100BaseTX Cat. 5 UTP/STP, up to 100 m

Led Indicators

Per Port:
(TX): Link/Act, PoE
Per Unit: Power

Power Requirement

Internal Power Supply: AC Input (90~260V/AC, 50~60Hz) UL Safety

Power supply

130Watt

Dimensions

263 x 160 x 44 mm (L x W x H), 1U high

Weight

2.3kg

Operating Temperature

0 to 55℃

Storage Temperature

-20 to 90℃

Humidity

10 to 90% RH (non-condensing)

Certifications

FCC , CE



-       Sản xuất tại Taiwan.

-       Bảo hành: 12 tháng.
