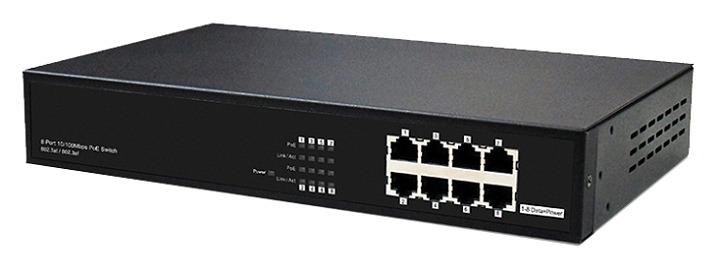

8-Port 10/100Mbps PoE Switch IONNET IFS-808 (65Watt)

-       Bao gồm 8-Port PoE, công suất 65 Watt.

-       Nguồn điện: 90-260VAC.

-       8 port PSE Fast Ethernet PoE switch

-       Complies with IEEE802.3 10Base-T

-       Complies with IEEE802.3u 100Base-TX

-       Complies with 802.3x Flow Control

-       Complies with IEEE-802.3az Green Ethernet

OverView

-       IFS-808 (65) series are 8 10/100M port Power over Ethernet witch which consists of 8 PSE/PoE ports with compliant to POE+ IEEE 802.3at and 802.3af, it supports the power up to 30Watt and new green power saving idea on each PSE/PoE Port. That can solve the limitation of the power outlet location and offer the system relocation easily. The case is designed for small office and can be upgrade to 1U” chassis.

Features

-       Product Features

-       8 Port PSE/ PoE function, compliant with IEEE-802.3af and IEEE802.3at

-       Supporting the power up to 30Watt for each PSE/PoE port

-       Providing 8 10/100Mbps switching ports

-       Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,

-       Supporting the flow control: back pressure for Half-duplex and IEEE 802.3x for Full-duplex mode

-       All ports support Auto-MDIX function

-       Being dedicated 200Mbps Full-duplex bandwidth to the each port

-       Non-blocking & Non-head-of-line blocking full-wire speed forwarding

-       Auto-learning networking configurations

-       Store-and-Forward switching methods

-       Built-in 4K MAC learning table, 1.25M bits buffer memory

-       Filtering/Forwarding Rate: 100Mbps/148,800pps; 10Mbps/14,880pps

-       Supporting packet length 1600 bytes

-       Status LEDs: System Power, Link/Activity, and PoE/PSE on line

-       Smart plug & play

-       PoE+ Green power Management

-       Link up mode: auto detects the level class of Power device, budgets power output for each port.

-       Power down mode: auto detect no link/ standby of Power device

Specification

-       Sản xuất tại Taiwan.

-       Bảo hành: 12 tháng.
