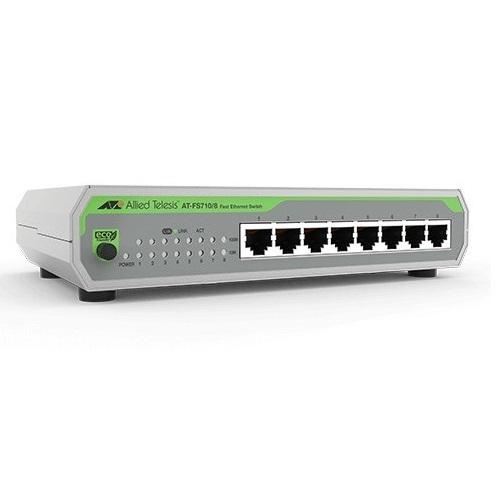

8-port 10/100TX Unmanaged Fast Ethenet Switch ALLIED TELESIS AT-FS710/8E
- 8 × 10/100TX ports.
- Fanless - silent operation.
- Power saving mode.
- EAPOL/BPDU forwarding.
- Flow control.
- Jumbo frames.
- Half/full-duplex.
- Auto-negotiation.
- Auto MDI/MDI-X.
- Back pressure.
Đặc tính kỹ thuật
| Performance | |
| Port | 8 x 10/100TX |
| MAC addresses | 2 K |
| Packet buffer | 96 KB |
| Support | EAP/BPDU passthrough, Half/full-duplex, Auto-negotiation, Auto MDI/MDI-X, Flow control, Back pressure, Power saving mode, Jumbo frame |
| Interface Connections | 10/100TX, RJ-45 |
| Switch Capacity | 1.6 Gbps |
| Throughput | 1.19 Mpps |
| Standards and Compliance | |
| IEEE 802.3 | 10BASE-T |
| IEEE 802.3u | 100BASE-TX |
| IEEE 802.3x | Flow control |
| Power Characteristics | |
| Frequency | 50 to 60 Hz |
| Voltage | 100-240 VAC |
| Max Power consumption | 2.4 W |
| Environmental Specifications | |
| Operating temp | 0 to 50ºC |
| Storage temperature range | -25 to 70ºC |
| Operating humidity | 10-90% non-condensing |
| Storage relative humidity range | 5-95% non-condensing |
| Operating altitude | 2000 meters maximum |
| Physical Characteristics | |
| Dimensions | 196 x 124 x 38 mm |
| Weight | 690 g |
- Bảo hành: 12 tháng.
